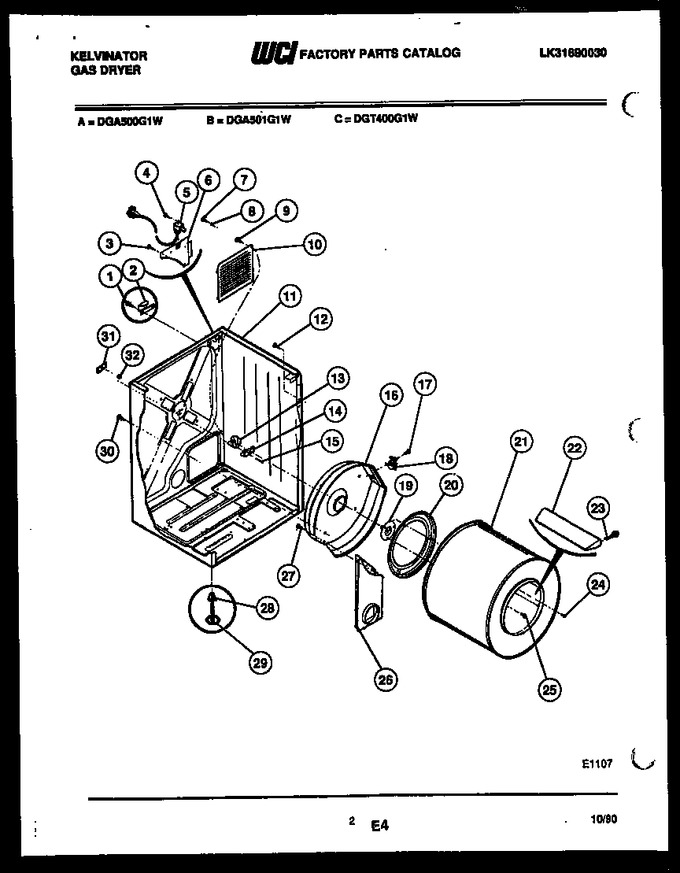

02 - Cabinet And Component Parts


03 - Door Parts


04 - Console And Control Parts


05 - Blower And Drive Parts


06 - Burner, Igniter And Valve


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08011338		Screw		Appelez-nous	-
2	3205811		Hinge		Appelez-nous	-
3	5303015671		Screw		Appelez-nous	-
4	5303010202		Screw				$ 5.15
5	5303281129		Service Cord		Appelez-nous	-
6	3281130		Cover		Appelez-nous	-
7	3281106		Screw		Appelez-nous	-
8	3281107		Washer		Appelez-nous	-
9	5303281035		Screw		Appelez-nous	-
10	5303281018		Cover Plate		Appelez-nous	-
11	3205658		Cabinet - Almond		Appelez-nous	-
12	5303010202		Screw				$ 5.15
13	131825900		Bearing (part Of Rear Bearing Kit.)   (Replaces: 5303281008)			Immediately	$ 10.97
14	131724301		Bracket-bearing (part Of Rear Bearing Kit.)   (Replaces: 5303281023)			Immediately	$ 25.66
15	5303281033		Screw		Appelez-nous	-
16	3205699		Heater Hsg. & Seal		Appelez-nous	-
17	3281120		Screw		Appelez-nous	-
18	5308015399		Thermostat				$ 242.18
19	5303281153		Shaft (part Of Rear Bearing Kit.)   (Replaces: 5303281009)			Immediately	$ 46.64
20	3204254		Baffle				$ 129.00
21	3202753		Drum		Appelez-nous	-
22	137552900		Vane   (Replaces: 5303201200)				$ 54.95
23	131382300		Screw   (Replaces: 3202754)			Immediately	$ 13.46
24	5303207393		Screw				$ 6.14
25	5303205255		Screw (part Of Rear Bearing Kit.)				$ 5.04
26	3281123		Heat Duct		Appelez-nous	-
27	5303281035		Screw		Appelez-nous	-
28	3201202		Grommet				$ 22.47
29	5303281032		Foot Bolt		Appelez-nous	-
30	5303010202		Screw				$ 5.15
31	5303281020		Nut-flat (part Of Rear Bearing Kit.)				$ 17.01
32	5303281019		Ball (part Of Rear Bearing Kit.)				$ 16.30
*41847	5303281153		Rear Bearing Kit			Immediately	$ 46.64
