View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Oven Parts
03 - Control Panel Parts

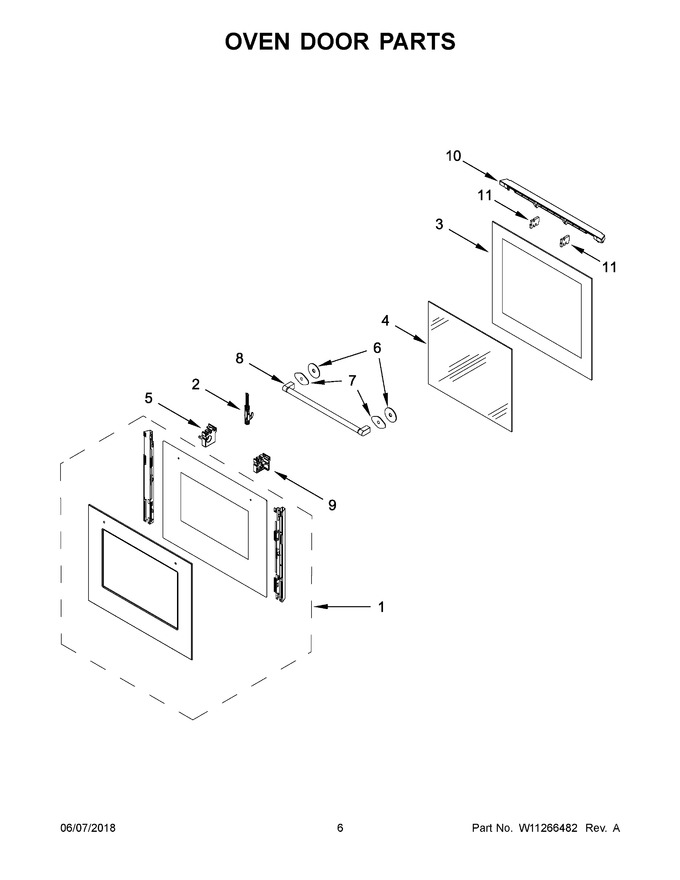

04 - Oven Door Parts
05 - Internal Oven Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11267734 | Door, Oven Outer Assembly (Replaces: W10683366) |
|
Immediately | $ 359.92 | ||||
| 2 | W11267731 | Hinge, Door (Replaces: W10648945) |
|
Immediately | $ 152.33 | ||||
| 3 | W11267735 | Glass, Inner Door (Replaces: W11266552) |
|
$ 154.47 | |||||
| 4 | W11267737 | Glass, Door (Replaces: W10582564) |
|
Immediately | $ 227.25 | ||||
| 5 | W11267738 | Support, Door Glass (left) (Replaces: W10589909) |
|
$ 113.28 | |||||
| 6 | W10519080 | Washer, Door Handle |
|
- | |||||
| 7 | W10240564 | Spacer, Door Handle |
|
$ 7.25 | |||||
| 8 | W10519027 | Handle, Door |
|
$ 150.96 | |||||
| 9 | W11267736 | Support, Door Glass (right) (Replaces: W10593001) |
|
Immediately | $ 113.28 | ||||
| 10 | W11267732 | Vent, Door Trim Top (Replaces: W10632458) |
|
- | |||||
| 11 | W11267733 | Spacer, Door Trim Top (Replaces: W10633369) |
|
$ 19.54 |
