01 - Backguard
02 - Cabinet Assy
03 - Control Panel
04 - Electrical Components
05 - Main Top And Oven Assy
06 - Oven Door
07 - Storage Drawer
SELECT A DIAGRAM
New Model Search:

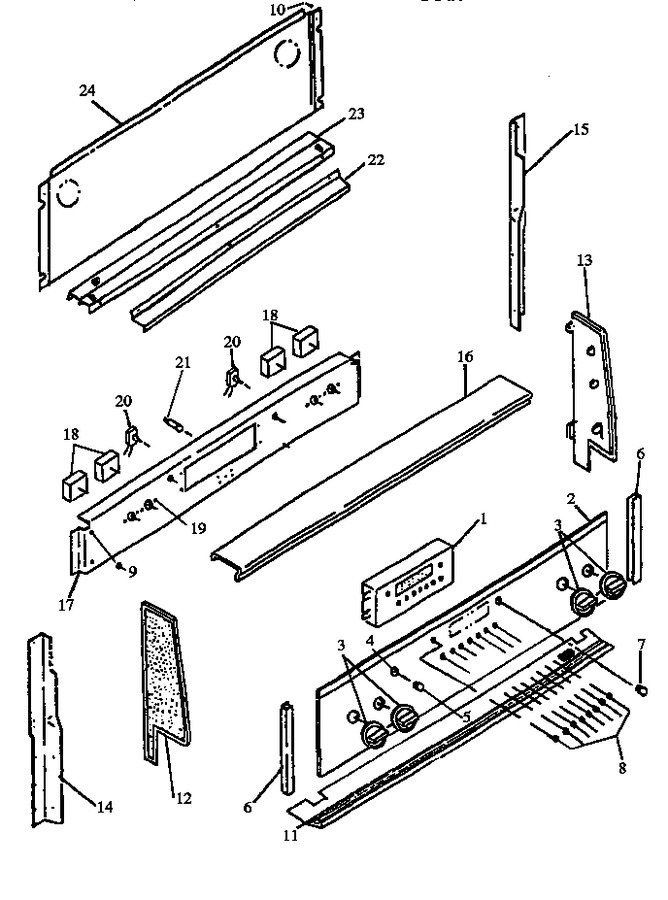

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0307784 | Erc Iii (elec) |
|
- | |||||
| 1 | Y0304555 | Erc (electronic Clock) |
|
- | |||||
| 2 | 0307281 | Glass, Backguard |
|
- | |||||
| 3 | 0305512 | Knob - Infinite Sw |
|
- | |||||
| 4 | 0305320 | Bezel Panel Switch (lt. Gray) |
|
- | |||||
| 5 | 0306650 | Cap, Oven Light Sw (gray) |
|
- | |||||
| 6 | Y0305322 | Channel Glass (wht) |
|
- | |||||
| 7 | 308385T | Knob, Clock (gray) |
|
- | |||||
| 7 | Y0305318 | Knob, Clock (lt Gray) |
|
- | |||||
| 8 | Y0305330 | Knob, Set Button (lt Gray) |
|
- | |||||
| 8 | 308386T | Button, Erc Set (lt Gray) |
|
- | |||||
| 9 | Y0063661 | Bumper, Oven Door |
|
- | |||||
| 9 | Y0308013 | Knob, Set Button (wht) |
|
- | |||||
| 10 | W11245710 | Screw, No.8-18x.406-.344 Waferhd (Replaces: Y0059445) |
|
Immediately | $ 12.65 | ||||
| 11 | 306198W | Kit, Vent Rework-wht |
|
- | |||||
| 12 | 304927W | End Cap-bkgd Lt/rt (wht) |
|
- | |||||
| 13 | 304928W | End Cap-bkgd Lt/rt (wht) |
|
- | |||||
| 14 | 0306589 | Support, Bkgd (lh) |
|
- | |||||
| 15 | 0306590 | Support, Bkgd (rh) |
|
- | |||||
| 16 | 305296W | Top Trim Backguard |
|
- | |||||
| 17 | Y0307349 | Panel, Control |
|
- | |||||
| 18 | 0071745 | Switch, Infinite |
|
- | |||||
| 19 | WP3400882 | Screw, No.8-32 X 3/16 Pph (Replaces: Y0041768) |
|
Immediately | $ 6.47 | ||||
| 20 | 306824B | Kit, Light Switch |
|
- | |||||
| 21 | 0307343 | Light, Ind (white) |
|
- | |||||
| 22 | 0304977 | Light Diffuser Backguard-clear |
|
- | |||||
| 23 | 0305033 | Bracket, Retainer |
|
- | |||||
| 24 | 0309137 | Cover, Backguard |
|
- | |||||
| NI | 0069187 | Tape, Seal 1=1ft |
|
- | |||||
| NI | Y0065052 | Speednut |
|
- | |||||
| NI | Y0073657 | Screw, No.6-20 X .375 Pan Hd Ph |
|
- | |||||
| NI | Y0092373 | Screw, No.6-20 X .375 Panhd(blk) |
|
- | |||||
| NI | W11245710 | Screw, No.8-18 X 3/8 P Trs Hd Lp (Replaces: Y0041809) |
|
Immediately | $ 12.65 |
