View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

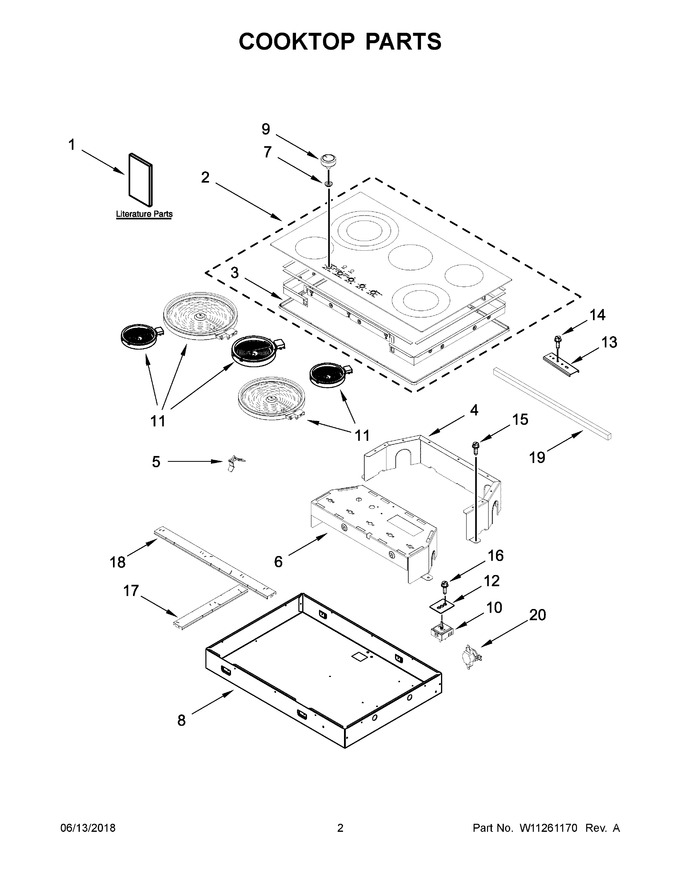

02 - Cooktop Parts
03 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11206696 | Instructions, Installation |
|
- | |||||
| 2 | W11261601 | Cooktop (black) (Replaces: W11120992) |
|
Immediately | $ 498.47 | ||||
| 3 | N/P | Trim, Stainless (not Serviced) |
|
- | |||||
| 4 | W10340209 | Shield, Switch |
|
- | |||||
| 5 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 6 | W11215841 | Plate, Switch |
|
- | |||||
| 7 | W10853046 | Grommet (stainless) (Replaces: W10593536) |
|
Immediately | $ 63.88 | ||||
| 8 | N/P | Box, Burner (not Serviced) |
|
- | |||||
| 9 | W11084158 | Knob, Control (stainless) (Replaces: W10884728) |
|
Immediately | $ 18.46 | ||||
| 10 | W10917724 | Switch, Infinite (left Front) (Replaces: W10437094) |
|
Immediately | $ 116.42 | ||||
| 11 | WPW10342780 | Element (1300w) (left Front) (Replaces: W10342780) |
|
Immediately | $ 130.79 | ||||
| 12 | 3183956 | Seal, Switch Cover |
|
$ 41.81 | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 16 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.26 | ||||
| 17 | W11175342 | Rail, Short |
|
- | |||||
| 18 | W11175345 | Rail, Horizontal |
|
- | |||||
| 19 | W11261880 | Top, Foam (heat Shield) (Replaces: W11177349) |
|
$ 22.41 | |||||
| 20 | W10471482 | Switch, Tod High Limit |
|
Immediately | $ 45.81 | ||||
| 10A | W11129442 | Switch, Infinite (left Rear) (Replaces: W10437097) |
|
Immediately | $ 90.51 | ||||
| 10B | W11661906 | Switch, Infinite (center Rear) (Replaces: W10843843) |
|
Immediately | $ 17.63 | ||||
| 10C | W11259362 | Switch, Infinite (right Front) (Replaces: W11117250) |
|
$ 142.24 | |||||
| 10D | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 94.18 | ||||
| 11A | W10823720 | Element (3000w) (left Rear) (Replaces: W10187839) |
|
Immediately | $ 302.91 | ||||
| 11B | WP8273993 | Element (1800w) (center Rear) (Replaces: 8273993) |
|
Immediately | $ 220.06 | ||||
| 11C | W11259508 | Element (3200w) (right Front) (Replaces: W11117008) |
|
Immediately | $ 290.15 | ||||
| 11D | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 1A | W11245478 | Instructions, Undercounter Installation |
|
- | |||||
| 1B | W11161586 | Guide, Use & Care |
|
- | |||||
| 1C | W11238366 | Diagram, Wiring |
|
- | |||||
| 2A | W11263253 | Cooktop (stainless) (Replaces: W11120993) |
|
$ 575.43 | |||||
| NI | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 105.67 | ||||
| NI | W11263352 | Insulation, Cooktop (Replaces: W11183281) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11110554 | Harness, Main |
|
$ 265.65 | |||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.33 | |||||
| NI | WP90767 | Screw (for Main Harness) (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 |
