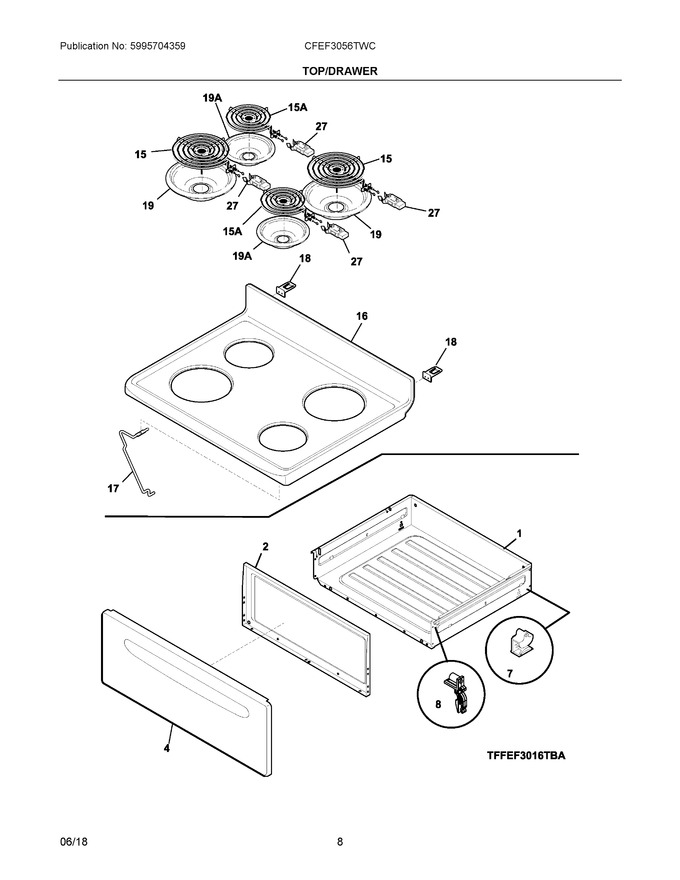

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility   (Replaces: 316408707)			Immediately	$ 110.61
2	5304527989		Liner, Drawer   (Replaces: 316403300)				$ 28.83
4	5304511973		Panel, Drawer, White, Outer, W/intgr Handle				$ 100.05
7	316407402		Glide, Drawer, Rear			Immediately	$ 9.86
8	5304490938		Glide, Drawer, Front			Immediately	$ 14.41
15	316538904		Lamp, Oven Light   (Replaces: 316538901)			Immediately	$ 20.48
16	5304509078		Main Top, Assembly, White				$ 566.32
18	316580800		Bracket-hinge, Main Top			Immediately	$ 9.86
26	5304500986		Channel, Element Support, (2)				$ 41.68
43	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
52	316461700		Clip, Element Mtg				$ 12.05
15A	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 122.86
15A	5304533520		Element, Dual, 9"/6", Surface, 3000w, Quick Boil   (Replaces: 316282000)			Immediately	$ 90.14
15B	316282101		Element, Dual, 9/12", Surface, 1700/2700w, Dual Radiant			Immediately	$ 283.03
15C	5304521951		Element, Surface, Warmer   (Replaces: 5304509306)			Immediately	$ 64.46
26A	316498200		Bracket-support, Chassis, Aluminum				$ 52.33
26B	316607600		Bracket, Chassis Support, Front				$ 52.33
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	5304511542		Harness, Surface Element				$ 80.09
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 12.89
NIA	5308014215		Screw, 6-20 X 0.312				$ 2.28
NIA	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67

    View Diagram in Separate Window       Print Part List
