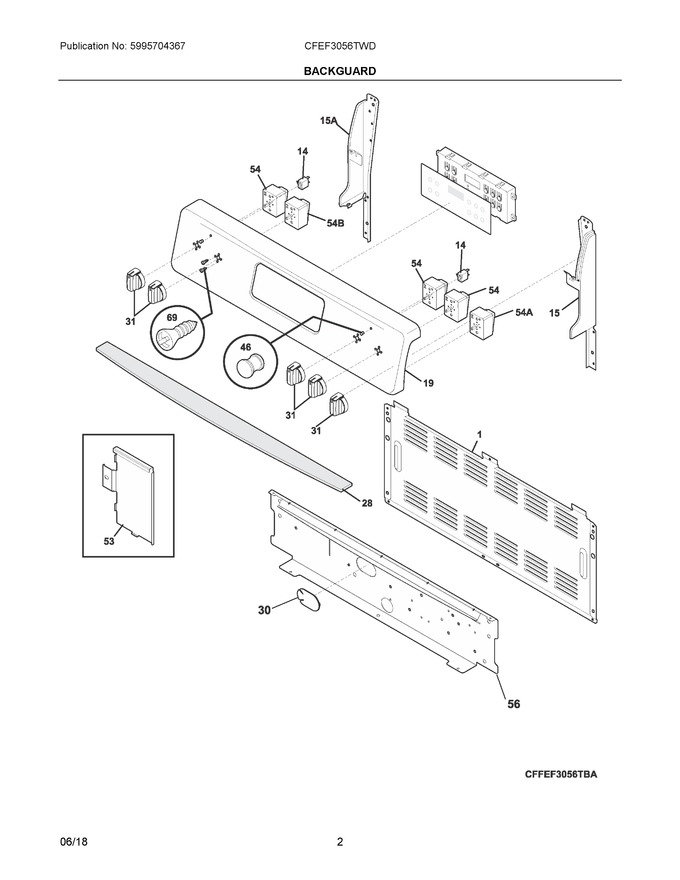

02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316281802 | Shield, Backguard, Rear Wall (Replaces: 316281801) |
|
$ 57.64 | |||||
| 14 | 316022500 | Light/lamp, Indicator, Black, 125 V |
|
Immediately | $ 53.57 | ||||
| 15 | 808754505 | Cap, End, White, Rh |
|
$ 61.66 | |||||
| 19 | 5304509072 | Panel, Backguard, White |
|
- | |||||
| 20 | 5304509051 | Clock, Es330isb |
|
$ 260.87 | |||||
| 28 | 316528700 | Insulation, Manifold Panel |
|
$ 89.31 | |||||
| 30 | 316577600 | Plug, Button, Oval, Harness |
|
$ 14.89 | |||||
| 31 | 5304508957 | Knob, Control, White |
|
Immediately | $ 18.95 | ||||
| 46 | 316557300 | Lens-light/lamp, Indicator, Clear |
|
Immediately | $ 16.77 | ||||
| 53 | 316355000 | Shield, Flue, Inner |
|
- | |||||
| 54 | 316436000 | Switch, Infinite, Small Element |
|
Immediately | $ 80.34 | ||||
| 56 | 316234029 | Shield, Backguard, White, Inner |
|
$ 87.17 | |||||
| 69 | 5303288565 | Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg |
|
$ 3.12 | |||||
| 13A | 5304508926 | Switch, Infinite, Warmer |
|
Immediately | $ 84.18 | ||||
| 15A | 808754506 | Cap, End, White, Lh |
|
$ 65.98 | |||||
| 20A | 316419376 | Overlay, Clock, White, Es330isb |
|
$ 43.13 | |||||
| 54B | 316238201 | Switch, Infinite Radian, Dual |
|
Immediately | $ 89.00 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 5308014215 | Screw, 6-20 X 0.312 |
|
$ 2.28 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 |
