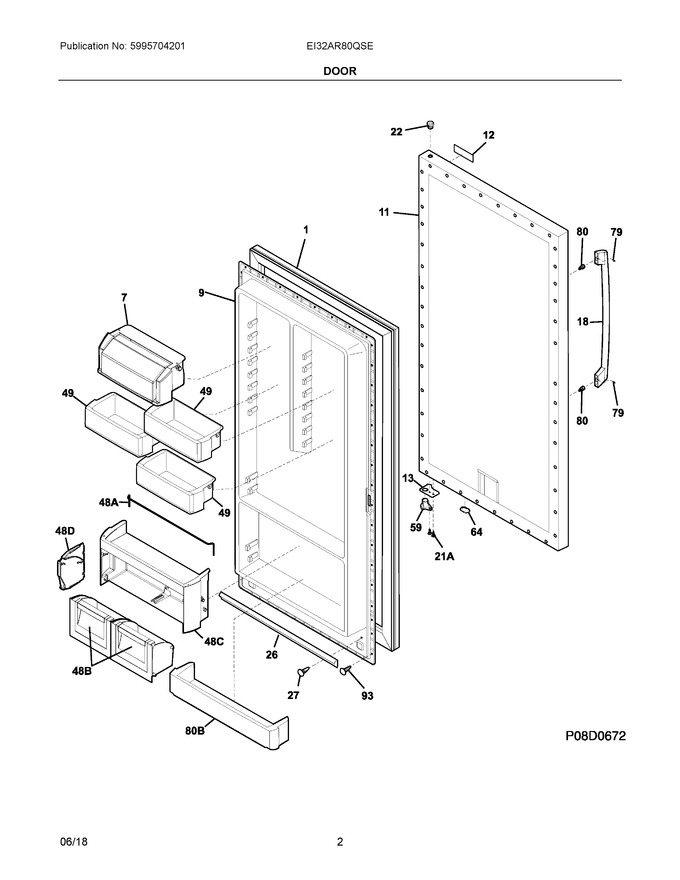

SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505782		Gasket			Immediately	$ 235.60
7	297326200		Dairy Bin, Assembly				$ 122.58
9	297280801		Panel-inner Door, Frzr				$ 222.01
11	297329320		Panel-outer Door, Stainless Steel				$ 927.78
12	241873301		Nameplate, Electrolux, Stainless				$ 11.15
13	297302800		Door Stop, Rh				$ 22.16
18	241881309		Handle-door, Stainless				$ 256.62
22	216970801		Bearing, Hinge, Gray, Top				$ 4.25
26	216524201		Gasket, Secondary				$ 49.62
27	5303212828		Clip, Panel Mtg				$ 16.63
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 14.18
49	297291700		Bin-door, 2-liter				$ 97.65
59	297302900		Bearing, Door Stop				$ 7.00
64	297014702		Plug-button, Door Base				$ 9.41
79	218755401		Screw-set, 10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
93	297410600		Screw, 8-18 X .500			Immediately	$ 3.55
21A	297197500		Screw, Door Stop Mtg, Fh38-16x.750, P Twin				$ 14.46
48A	297291601		Wire				$ 93.14
48B	297261600		Bin-door, Tilt Out				$ 153.28
48C	297261700		Shelf-door, Gallon				$ 263.91
48D	297280600		Divider				$ 47.93
80B	297292500		Shelf, Condiment				$ 63.42
NI	297048000		Screw, Anchor, #8, White				$ 12.05
NI	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
NI	297175300		Wrench, Allen				$ 15.49
NI	240537301		Nut-anchor, Door Hdl Screw				$ 11.34
NI	297355300		Label, Quick Start		Appelez-nous	-
NIA	5304406520		Clip, Panel Mtg Kit, (40)				$ 125.83

    View Diagram in Separate Window       Print Part List
