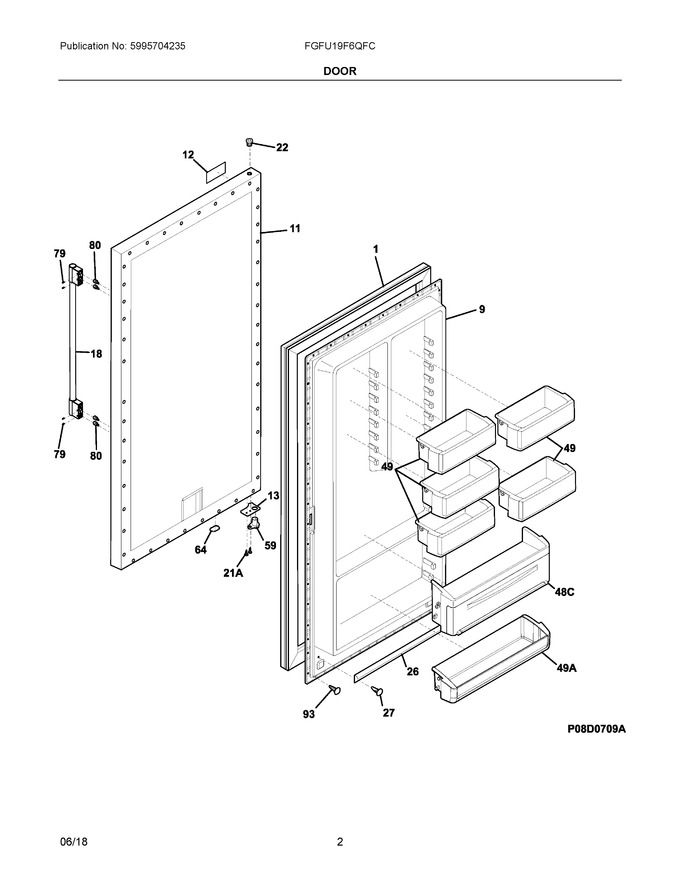

SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System


05 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505782		Gasket			Immediately	$ 235.60
9	297280800		Panel-inner Door, Frzr			Immediately	$ 223.97
11	297329309		Panel-outer Door, Stainless Steel				$ 728.77
12	242015201		Label-nameplate			Immediately	$ 6.90
13	297302801		Door Stop, Lh				$ 19.74
18	241930101		Handle-door, Stainless				$ 160.88
22	216970801		Bearing, Hinge, Gray, Top				$ 4.25
26	216524201		Gasket, Secondary				$ 49.62
27	5303212828		Clip, Panel Mtg				$ 16.63
49	297291700		Bin-door, 2-liter				$ 97.65
59	297302900		Bearing, Door Stop				$ 7.00
64	216403700		Plug-button, Hole Filler, Door Base   (Replaces: 216403701)				$ 58.12
79	218755401		Screw-set, 10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
93	216858001		Screw, Ph Truss Head, 8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
21A	297197500		Screw, Door Stop Mtg, Fh38-16x.750, P Twin				$ 14.46
48C	297350101		Bin-door, Soft Freeze   (Replaces: 297350100)			Immediately	$ 139.23
49A	297295400		Bin-door, Gallon, (2)				$ 170.94
NI	297048000		Screw, Anchor, #8, White				$ 12.05
NI	297410600		Screw, 8-18 X .500			Immediately	$ 3.55
NI	240537301		Nut-anchor, Door Hdl Screw				$ 11.34
NI	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
NI	216905301		Screw, Ph 3-24x.25, Electronic Assy				$ 14.46
NIA	5304406520		Clip, Panel Mtg Kit, (40)				$ 125.83
NIA	241701901		Screw Driver		Appelez-nous	-
NIB	297175300		Wrench, Allen				$ 15.49

    View Diagram in Separate Window       Print Part List
