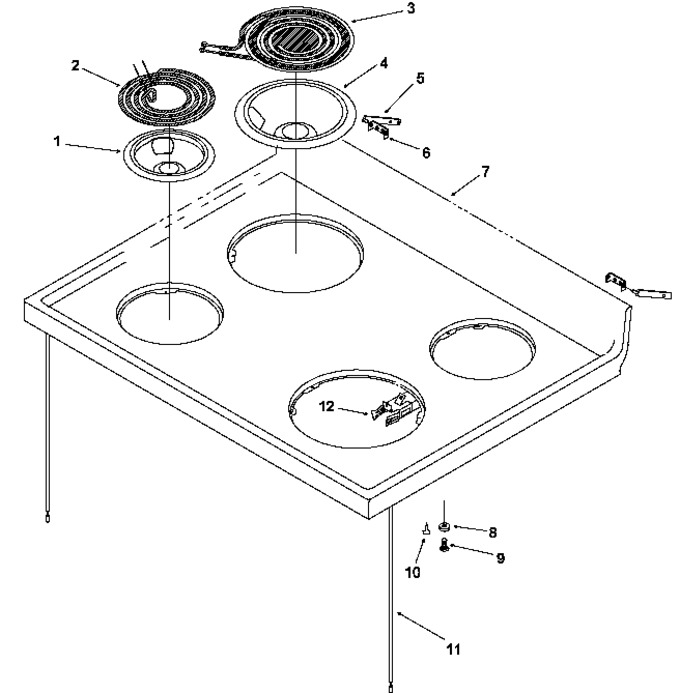

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10291024 | Bowl, Burner 6`` (lt Gray) (Replaces: 308648T) |
|
Immediately | $ 49.90 | ||||
| 2 | WPW10259868 | Element, 4 Turn 1500w 6`` (Replaces: Y0051576) |
|
Immediately | $ 112.28 | ||||
| 3 | WPW10259865 | Element, 5 Turn 2600w 8`` (Replaces: Y0304871) |
|
Immediately | $ 105.92 | ||||
| 4 | W10291024 | Bowl, Burner 8`` (lt Gray) (Replaces: 308649T) |
|
Immediately | $ 49.90 | ||||
| 5 | Y0315931 | Pin, Hinge |
|
- | |||||
| 6 | Y0306150 | Brkt, Hinge Strap Mtg |
|
- | |||||
| 7 | 306899W | Main Top-electric Upswept |
|
- | |||||
| 10 | 31717001 | Spacer, Snap-in |
|
- | |||||
| 11 | Y0315430 | Support, Maintop |
|
- | |||||
| 12 | 330031 | Kit, Top Element Term Block (Replaces: Y0089336) |
|
Immediately | $ 14.48 | ||||
| NI | Y0315919 | Harness, Coil Elem. R.h. |
|
- | |||||
| NI | Y0315918 | Harness, Coil Elem L.h. |
|
- | |||||
| NI | 0308408 | Clip,element |
|
- |
