SELECT A DIAGRAM

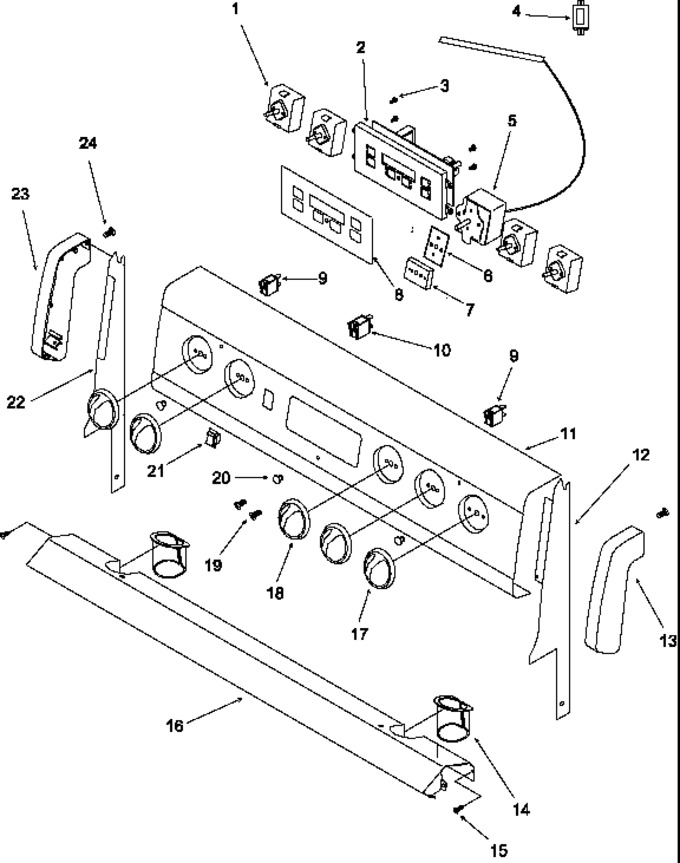

01 - Backguard


02 - Cabinet


03 - Cavity


04 - Main Top


05 - Oven Door


06 - Storage


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP74011243		Switch, Infinite   (Replaces: Y0315563)				$ 115.88
2	Y0315568		Clean Clock, Timer/order B,l,o		Appelez-nous	-
3	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
5	Y0316885		Thermostat		Appelez-nous	-
6	Y0315967		Plate, Adaptor		Appelez-nous	-
7	Y0316886		Switch, Auxilliary		Appelez-nous	-
8	315852W		Mylar,clean Timer		Appelez-nous	-
9	Y0059222		Light, Indicator (125v)		Appelez-nous	-
10	Y0059222		Light, Indicator (125v)		Appelez-nous	-
11	315938W		Assy, Bkgd Pnl & Brace		Appelez-nous	-
12	315876W		Bkgd. Support-rh		Appelez-nous	-
13	315841W		End Cap Rh				$ 24.87
14	0316548		Bushing, Wire		Appelez-nous	-
15	Y0041807		Screw No.8abx1/4 Ph Hd		Appelez-nous	-
16	315874B		Shield, Bkgd Trim Heat		Appelez-nous	-
17	315845W		Knob, Infinite Switch (wht)		Appelez-nous	-
18	315968W		Knob, Thermostat (wht)		Appelez-nous	-
19	Y0316546		Screw, No.8-32 X 3/16``		Appelez-nous	-
20	Y0316265		Lens, Indicator		Appelez-nous	-
21	301491W		Switch, Rocker		Appelez-nous	-
22	315877W		Bkgd. Support-lh		Appelez-nous	-
23	315843W		End Cap Lh				$ 29.45
24	Y0052031		Screw, No.8-32 X3/8 P Trs Hd Lp		Appelez-nous	-
NI	Y0061164		Screw No.8 - 18 X .250		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
