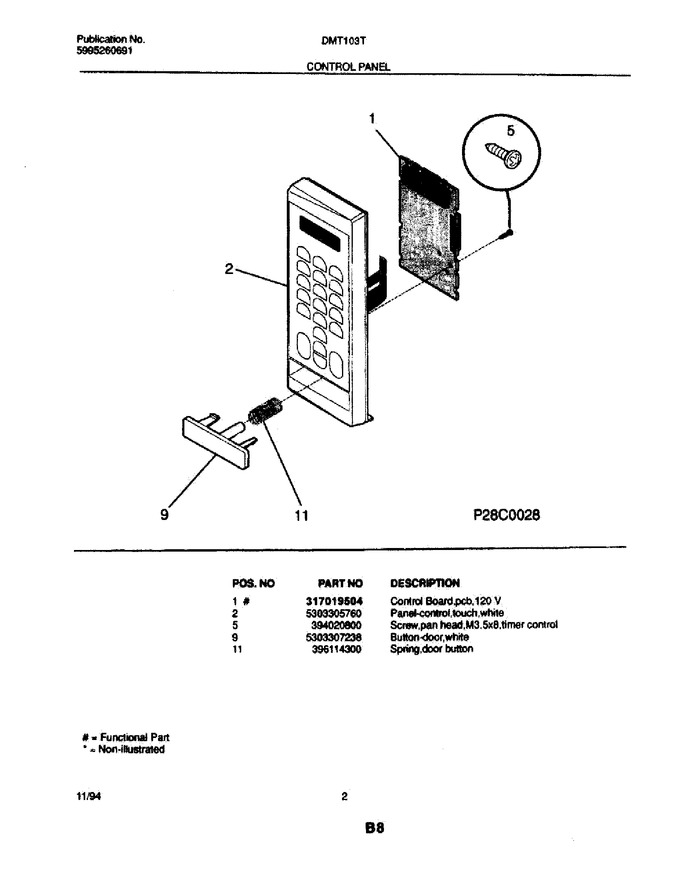

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 317019504 | Control Board, Pcb, 120 V |
|
- | |||||
| 2 | 5303305760 | Panel-control |
|
- | |||||
| 5 | 394020800 | Screw, Pan Head, M 3.5 X 8, Timer Control |
|
- | |||||
| 9 | 5303307238 | Button-door, White |
|
- | |||||
| 11 | 396114300 | Spring, Door Button |
|
- |
