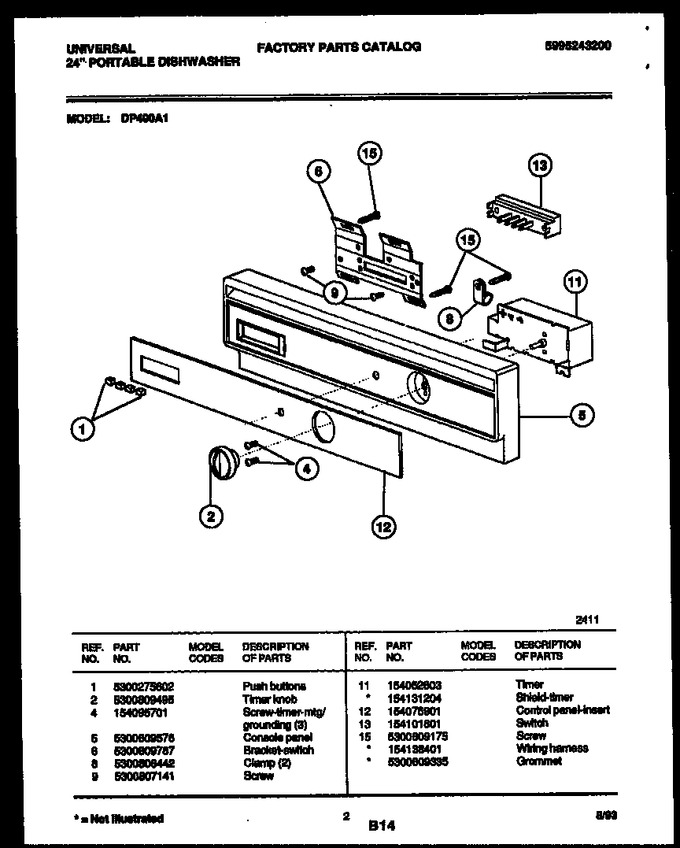

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300275602 | Push Buttons |
|
- | |||||
| 2 | 5300809495 | Timer Knob |
|
$ 80.48 | |||||
| 4 | 154095701 | Screw-timer-mtg/grounding (3) |
|
$ 10.34 | |||||
| 5 | 5300809576 | Console Panel |
|
- | |||||
| 6 | 5300809787 | Bracket-switch |
|
- | |||||
| 8 | 240396801 | Clamp (2) (Replaces: 5300808442) |
|
$ 19.13 | |||||
| 9 | 5300807141 | Screw |
|
- | |||||
| 11 | 154052803 | Timer |
|
- | |||||
| 12 | 154075901 | Control Panel-insert |
|
- | |||||
| 13 | 154101801 | Switch |
|
- | |||||
| 15 | 5300809175 | Screw 8b X 7/16`` |
|
- | |||||
| *84200 | 5300809335 | Grommet |
|
- | |||||
| *84200 | 154138401 | Wiring-harness |
|
- | |||||
| 11A | 154131204 | Shield-timer (non-illustrated) |
|
- |
