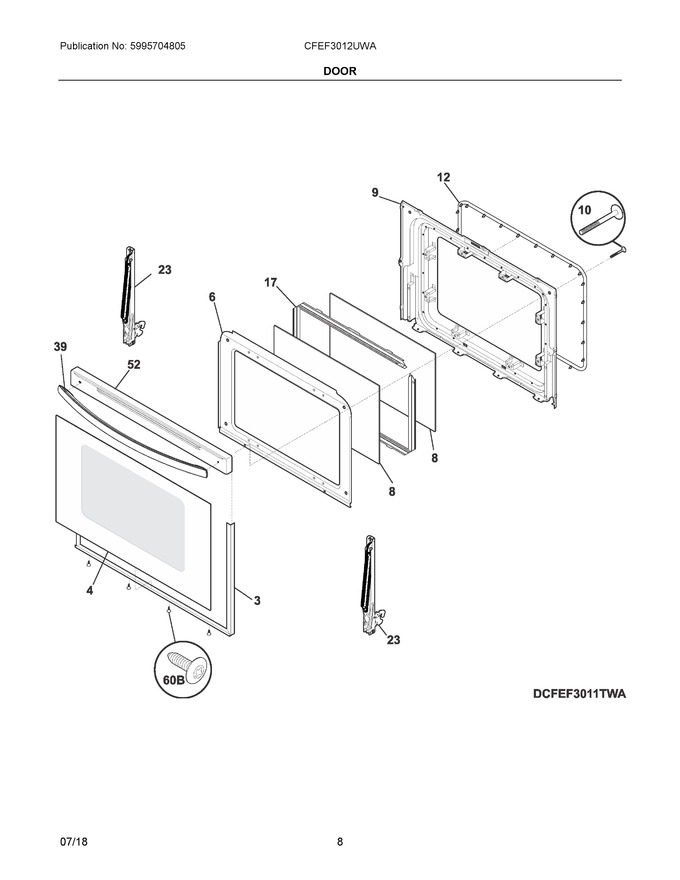

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935380		Trim Kit-door, 3 Sided, White, W/tape				$ 77.26
4	316202818		Glass, Oven Door, White, Outer   (Replaces: 316202830)				$ 247.99
6	316222714		Shield, Wool, Oven Door				$ 57.91
8	5304503232		Glass, Oven Door, Inner				$ 116.95
9	316230635		Liner, Oven Door				$ 135.37
10	316278700		Screw, Wafer Head, 10-14 X 1 3/8, Handle Mtg			Immediately	$ 27.50
12	316239700		Seal, Oven Door			Immediately	$ 152.43
17	5304520152		Spacer, Door Glass   (Replaces: 5304503231)				$ 23.51
23	316575924		Hinge, Oven Door				$ 64.49
39	5304522047		Handle, Door, White   (Replaces: 5304507385)			Immediately	$ 122.63
52	316491200		Cap, Door Trim, White			Immediately	$ 119.83
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316483102		Label, Anti-tip				$ 3.56
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
