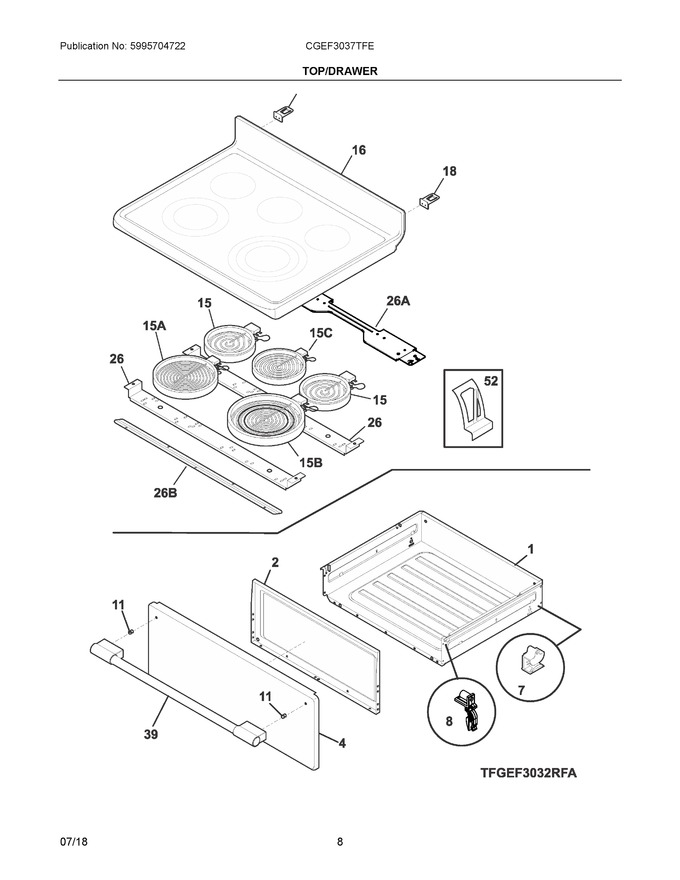

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408706 | Drawer, Utility (Replaces: 316408707) |
|
Immediately | $ 110.61 | ||||
| 2 | 5304527989 | Liner, Drawer (Replaces: 316403300) |
|
$ 28.83 | |||||
| 4 | 5304518011 | Panel, Drawer, Stainless (Replaces: 316352608) |
|
Immediately | $ 160.88 | ||||
| 7 | 316407402 | Glide, Drawer, Rear |
|
Immediately | $ 9.86 | ||||
| 8 | 807047202 | Glide, Drawer, Front Rail, (2) |
|
$ 12.89 | |||||
| 15 | 316538904 | Lamp, Oven Light (Replaces: 316538901) |
|
Immediately | $ 20.48 | ||||
| 16 | 5304513243 | Main Top Asm, Black |
|
$ 363.59 | |||||
| 18 | 316580800 | Bracket-hinge, Main Top |
|
Immediately | $ 9.86 | ||||
| 26 | 5304512926 | Channel, Element Support |
|
$ 46.22 | |||||
| 39 | 316554010 | Handle, Door/drawer, Stainless (Replaces: 316554008) |
|
Immediately | $ 168.44 | ||||
| 43 | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black, 44* |
|
$ 13.46 | |||||
| 52 | 316461700 | Clip, Element Mtg |
|
$ 12.05 | |||||
| 60 | 316433303 | Screw, Handle Mtg., 10-24 X 1.75", (2) (Replaces: 316439500) |
|
Immediately | $ 31.17 | ||||
| 15A | 318178110 | Element, Surface, 6", 1200, (2), Radiant |
|
Immediately | $ 122.86 | ||||
| 15A | 5304533520 | Element, Dual, 9"/6", Surface, 3000w, Quick Boil (Replaces: 316282000) |
|
Immediately | $ 90.14 | ||||
| 15B | 316282101 | Element, Dual, 9/12", Surface, 1700/2700w, Dual Radiant |
|
Immediately | $ 283.03 | ||||
| 15C | 5304521951 | Element, Surface, Warmer (Replaces: 5304509306) |
|
Immediately | $ 64.46 | ||||
| 26A | 316498200 | Bracket-support, Chassis, Aluminum |
|
$ 52.33 | |||||
| 26B | 316607600 | Bracket, Chassis Support, Front |
|
$ 52.33 | |||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316418901 | Screw, Trilobe, 10-32 X 5/16", Black |
|
$ 14.18 | |||||
| NI | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 | |||||
| NI | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NI | 5304517451 | Harness, Wiring, Surface |
|
- | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 5303288572 | Screw-handle Mtg |
|
- | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NIA | 5308014215 | Screw, 6-20 X 0.312 |
|
$ 2.28 |
