01 - Cover Sheet


02 - Control Panel

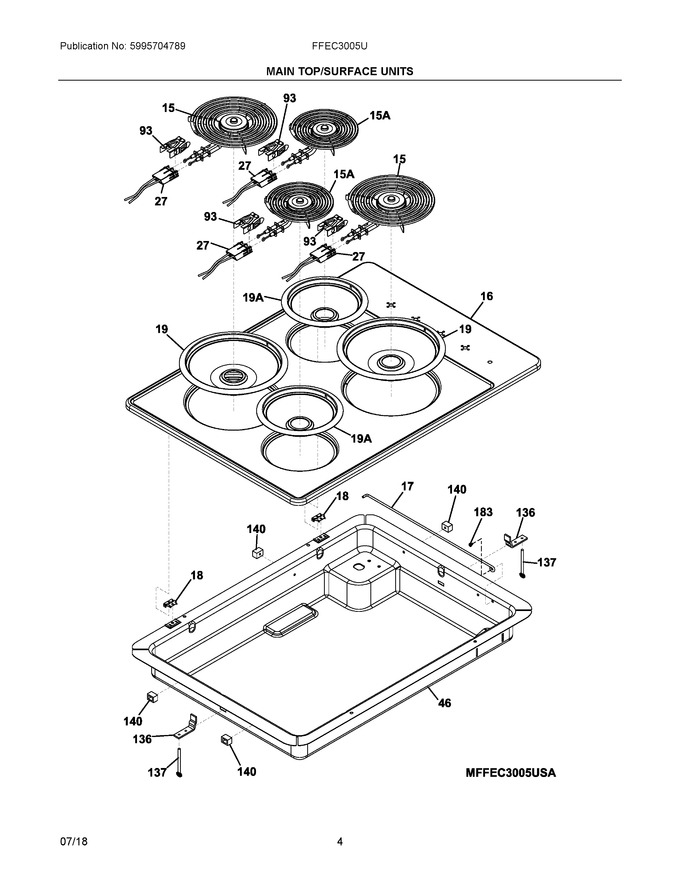

03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5304516159		Element, Surface, 8", W/limiter			Immediately	$ 78.12
16	305452159		Maintop Assembly, Black, W/graphics		Appelez-nous	-
17	3016817		Rod, Maintop Support		Appelez-nous	-
18	318074310		Hinge, Maintop, (2)				$ 51.98
19	316048413		Pan-surface Element, Chrome, Large/8 Inch			Immediately	$ 9.85
27	5304518283		Teminal Block, Surface Element, 21", White Leads		Appelez-nous	-
46	5304518278		Box, Burner		Appelez-nous	-
93	5304518281		Support, Terminal Block		Appelez-nous	-
136	318264301		Support, Box, (2)				$ 42.95
137	305452400		Screw, Lock Bracket, (2)			Immediately	$ 12.20
140	318216000		Spacer, Installation				$ 54.34
183	305456500		Screw		Appelez-nous	-
15A	5304516160		Element, Surface, 6", W/limiter			Immediately	$ 68.96
19A	316048414		Pan-surface Element, Chrome, Small/6 Inch			Immediately	$ 16.11
27A	5304518284		Teminal Block, Surface Element, 36", Brown Leads		Appelez-nous	-
27B	5304518285		Teminal Block, Surface Element, 36", Orange Leads		Appelez-nous	-
27C	5304518286		Teminal Block, Surface Element, 24", Yellow Leads		Appelez-nous	-
NI	305376105		Screw, #8-18 X 1/4		Appelez-nous	-
NI	305338701		Screw		Appelez-nous	-
NI	202855101		Holder, Cable				$ 1.42
NI	305338303		Washer, Flat		Appelez-nous	-
NI	305376100		Screw, 6-18 X 3/8		Appelez-nous	-
NI	5304518279		Box & Wires Assy		Appelez-nous	-
NI	5304518287		Harness, Wiring, Main		Appelez-nous	-
NI	5304518282		Wire, Ground		Appelez-nous	-
NI	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NIA	305458000		Screw, Lock Bracket, (2)		Appelez-nous	-
NIA	305517600		Nut, Keps		Appelez-nous	-
NIA	305338604		Screw, 6-32 X 1/4", Back		Appelez-nous	-
