SELECT A DIAGRAM

01 - Cover Sheet

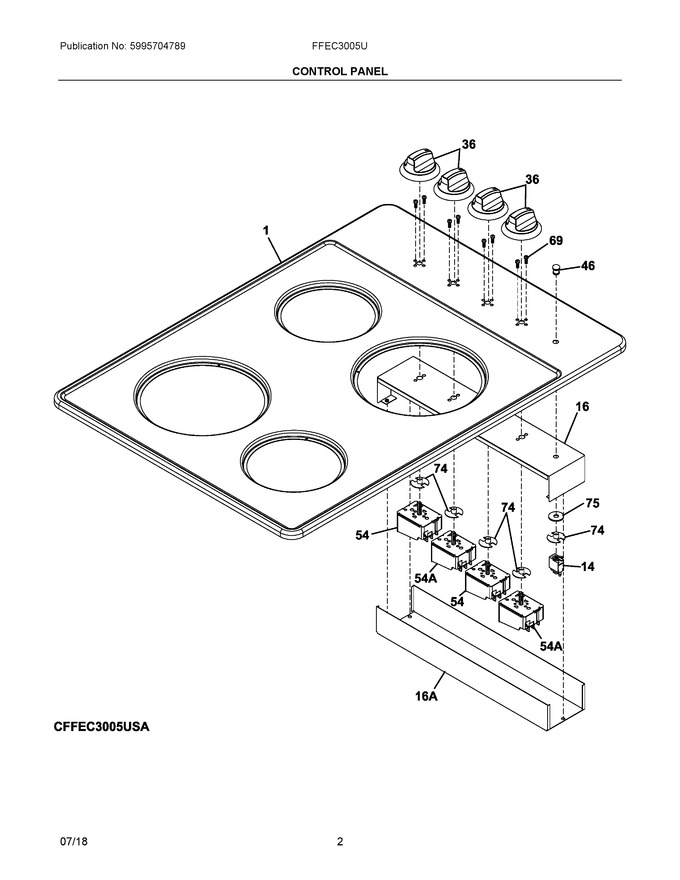

02 - Control Panel


03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	305452160		Maintop Assembly, White, W/graphics		Appelez-nous	-
14	318369501		Lamp, Indicator			Immediately	$ 67.62
16	305473200		Plate, Instrument Mtg		Appelez-nous	-
36	316544006		Knob, Control, White				$ 152.38
46	305512800		Lens, Light		Appelez-nous	-
54	318293818		Switch, Surface Element, Small, (2)			Immediately	$ 90.30
69	305338503		Screw, Switch Mtg.		Appelez-nous	-
74	318146010		Bushing, Switch				$ 17.16
75	5304518280		Washer		Appelez-nous	-
16A	305473300		Cover, Instrument Mtg		Appelez-nous	-
54A	318293827		Switch, Surface Element, Large			Immediately	$ 90.82
NI	305338701		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
