SELECT A DIAGRAM

01 - Cover Sheet

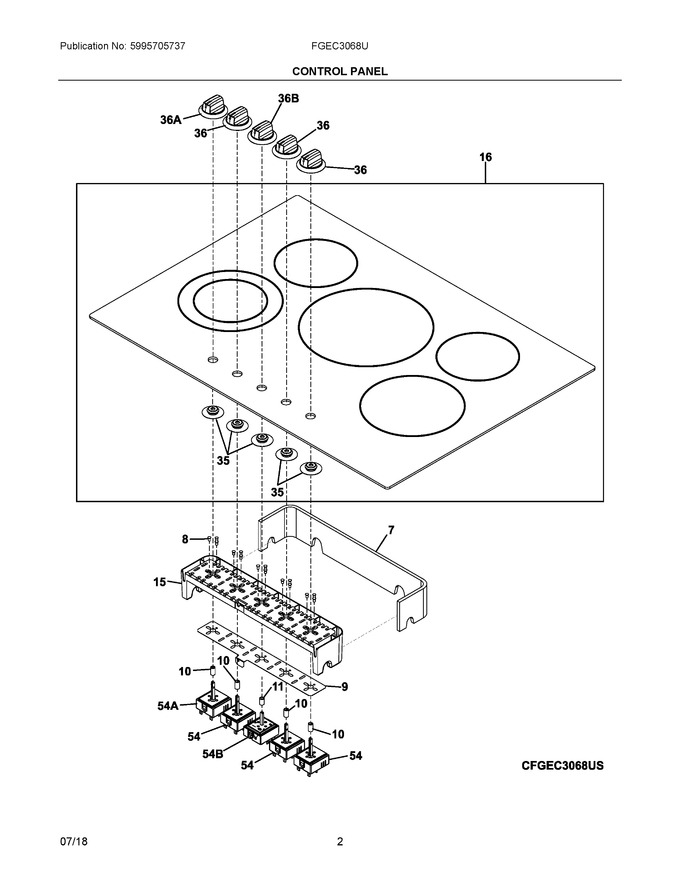

02 - Control Panel


03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	5304518265		Insulation, Control Box		Appelez-nous	-
8	5304536454		Screw, Switch Mtg., M4 X 7   (Replaces: 319224001)				$ 2.98
9	5304518266		Bracket, Grounding, Control Box		Appelez-nous	-
10	5304515131		Spacer, Silicone Seal, Switch Shaft			Immediately	$ 160.02
11	5304518250		Spacer, Turbo Boil, Silicone Seal, Switch Shaft		Appelez-nous	-
15	5304518267		Control Box, Plastic, 5 Zone				$ 92.84
16	305638978		Maintop, Assembly, Black/stainless, W/5 Bushings				$ 953.47
35	5304515130		Bushing, Knob, Sealing			Immediately	$ 91.15
36	5304518252		Knob, Control, Stainless, Single Element				$ 62.95
54	5304526190		Switch, Infinite, Single Control   (Replaces: 305458905)			Immediately	$ 90.50
36A	5304518253		Knob, Control, Stainless, Dual Element				$ 90.50
36B	5304518254		Knob, Control, Stainless, Turbo Boil				$ 63.70
54A	903097-9040		Switch, Infinite, Dual Control   (Replaces: 318191001)			Immediately	$ 90.83
54B	5304518255		Switch, Infinite, Turbo Boil				$ 109.73
NI	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
