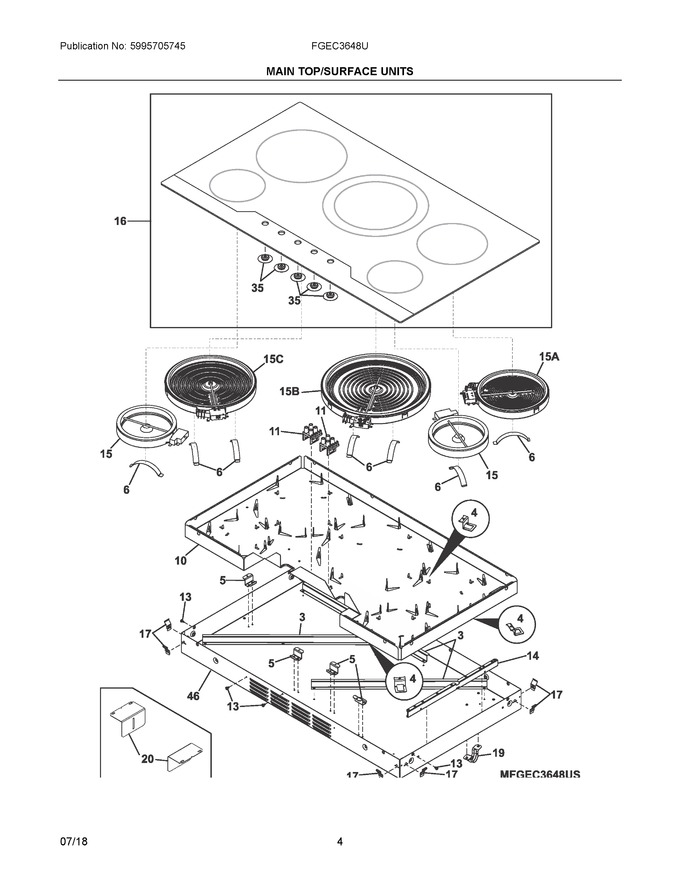

03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	387683500		Support, Burner Box		Appelez-nous	-
4	387683300		Bracket, Surface Element			Immediately	$ 13.42
5	5304518258		Bracket, Support, Z Style		Appelez-nous	-
6	387372900		Spring, Surface Element				$ 15.17
10	5304518272		Box, Support, Inner, Element		Appelez-nous	-
11	387812005		Light Assembly, Indicator, Hot Surface				$ 12.76
13	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.36
14	5304518260		Support, Beam		Appelez-nous	-
15	140283001026		Element, Surface, 6", 1200w   (Replaces: 374063522)			Immediately	$ 73.17
16	305638980		Maintop, Assembly, Black/stainless, W/5 Bushings				$ 984.86
17	387174602		Bracket, Spring, Cooktop Mtg.				$ 5.67
19	318389600		Bracket, Conduit Mtg.				$ 12.76
20	5304538915		Bracket, Retainer, Main Top   (Replaces: 5304518261)			Immediately	$ 5.41
35	5304515130		Bushing, Knob, Sealing			Immediately	$ 91.15
46	5304518273		Box, Cooktop, Outer		Appelez-nous	-
15A	374063622		Element, Surface, 7", 1800w			Immediately	$ 157.39
15B	316530001		Element, Surface, 9", 3200w, Turbo Boil			Immediately	$ 216.16
15C	316282101		Element, Surface, 9"/12", 1200w/1800w, Dual Radiant   (Replaces: 318198935)			Immediately	$ 283.03
NI	131202300		Screw, (4)   (Replaces: 305376102)			Immediately	$ 13.46
NI	318163601		Cleaner-cooktop				$ 0.42
NI	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NI	305351200		Rivet, 3, 2 X 6		Appelez-nous	-
NI	5304462994		Screw, 8-32 X 5/16		Appelez-nous	-
NI	202855101		Holder, Cable				$ 1.42
NI	305309606		Screw, (2)				$ 11.34
NI	5304518274		Box & Wires Assy		Appelez-nous	-
NI	5304518275		Harness, Wiring, Main		Appelez-nous	-
NI	305376101		Screw, Bracket, Surface Element		Appelez-nous	-
