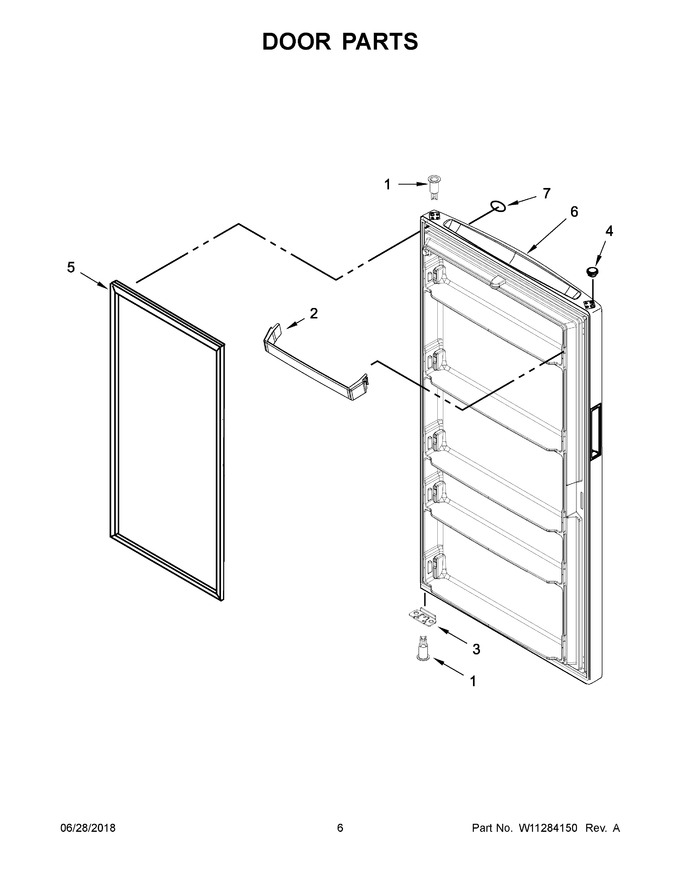

04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.47 | |||||
| 2 | W10737497 | Rail, Door Shelf |
|
$ 82.92 | |||||
| 3 | W10628869 | Bracket, Door Stop |
|
$ 22.56 | |||||
| 4 | WP2212648 | Plug, Hole (white) (Replaces: 2212648) |
|
$ 7.02 | |||||
| 5 | W10856583 | Gasket, Door (white) (Replaces: W10574474) |
|
Immediately | $ 274.68 | ||||
| 6 | W10746783 | Assembly, Door (includes Handle Cup) (white) (Replaces: W10673691) |
|
$ 767.76 | |||||
| 7 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 36.31 |
