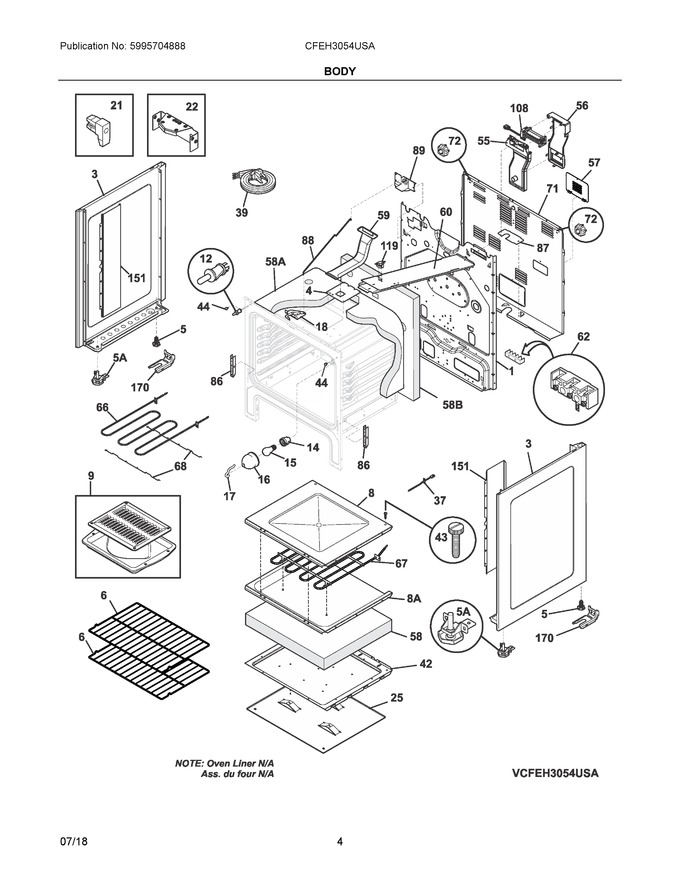

CFEH3054USA | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	5304527900	Back, Main (Replaces: 5304514161)	Appelez-nous	-
3	316400144	Panel, Bodyside, Black, Rh (Replaces: 316400118)		Immediately	$ 134.69
4	5304514136	Plate, Oven Vent			$ 33.31
5	316272900	Screw, Leveling, Plastic, Rear, (2)		Immediately	$ 27.50
6	316496201	Rack, Oven		Immediately	$ 103.48
8	316400601	Panel, Oven Bottom			$ 125.87
9	5304494997	Broil Pan Kit, Pan & Insert, Slate Blue, Optional, Accessory			$ 72.01
12	316445501	Switch, Oven Light, Door Frame			$ 90.01
14	316116400	Receptacle, Oven Light		Immediately	$ 56.10
15	316538904	Lamp, Oven Light (Replaces: 316538901)		Immediately	$ 20.48
16	5304524341	Lens, Oven Light, Glass (Replaces: 318406100)		Immediately	$ 14.18
17	316087500	Retainer, Lens			$ 56.70
18	316405800	Latch Assembly, Oven Door		Immediately	$ 56.74
21	316408000	Clip, Bodyside			$ 18.20
22	5304514125	Bracket, Support, Body Side, (2)			$ 12.05
25	316406200	Shield, Heat, Lower			$ 87.97
37	316490000	Probe, Oven Temp (Replaces: 316490003)		Immediately	$ 58.30
39	318113111	Cord, Electric			$ 95.55
42	316400701	Shield, Wool, Lower			$ 162.30
43	316282700	Screw, 8-18 X 1.438, Oven Bottom (Replaces: 3131732)			$ 9.93
44	316517600	Bumper, Front, Main			$ 12.05
55	5304514171	Duct, Inlet Air, Front		Immediately	$ 38.68
56	5304514172	Duct, Inlet Air, Rear		Immediately	$ 43.23
57	316283600	Cover, Access			$ 12.50
58	316403802	Insulation, Oven Sump			$ 110.57
59	5304514160	Tube, Oven Vent, Upper			$ 43.99
60	5304514196	Duct Assembly, Cooling, Toggle Lock	Appelez-nous	-
62	5303935061	Terminal Block Kit	Appelez-nous	-
66	316203301	Element, Broil		Immediately	$ 182.39
67	316413800	Element, Bake, Hidden		Immediately	$ 270.75
68	316429100	Support, Element, Broil			$ 62.51
71	5304514174	Shield, Wire, Rear			$ 110.57
72	5304514177	Spacer, Wire Shield, (2)			$ 12.89
86	316441300	Receptacle, Hinge			$ 21.97
87	316081202	Bracket, Cable Mtg			$ 4.96
88	316232702	Rod, Auto Latch			$ 12.89
89	5304528973	Motor-latch (Replaces: 316464300)		Immediately	$ 52.34
108	5304514166	Fan Assembly, Cooling		Immediately	$ 333.73
119	318578506	Thermostat, Safety, 105c		Immediately	$ 58.19
151	316404601	Shield, Heat, Bodyside (Replaces: 5304516866)			$ 21.27
170	316112005	Anti Tip Kit, Assy, W/template		Immediately	$ 18.91
3A	316400145	Panel, Bodyside, Black, Lh (Replaces: 316400119)		Immediately	$ 133.93
58A	316403700	Insulation, Oven Wrapper			$ 304.06
58B	316403600	Insulation, Oven Back			$ 125.75
5A	5304509869	Leveling Leg Assy, Metal, Front, (2), Bracket & Leg		Immediately	$ 15.08
8A	316411106	Base, Bake Element			$ 122.69
NI	316089500	Screw, 10-16 X .486			$ 13.46
NI	316260800	Screw-shoulder, W/shoulder, #8-18 X 1/2			$ 13.46
NI	5303271648	Screw, Wafer Hd Sq Dr, 8-18ab X 0.5		Immediately	$ 13.46
NI	5303289910	Screw, Truss Sqdr, 8a X 1", 62*			$ 5.67
NI	316418901	Screw, Trilobe, 10-32 X 5/16", Black			$ 14.18
NI	5303285179	Screw, Wafer Head, 8-32t X 0.500, Black, 44*			$ 13.46
NI	3203010	Fastener, U-type, (2)			$ 14.89
NI	5304514142	Harness, Wiring, Main			$ 208.55
NI	316021109	Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105)		Immediately	$ 27.50
NI	316021109	Screw, 8-18 X 0.5, Chrome		Immediately	$ 27.50
NI	316021132	Screw, 8-18 X 11/16, Black, (3)			$ 12.89
NIA	316279600	Screw, Bracket, Stiffener, (4)			$ 12.05
NIA	241500305	Screw, Self Pierce, #8, 18x.63 (Replaces: 297174300)			$ 3.03
NIA	316064600	Support, Oven Bottom			$ 18.95
NIA	316112005	Bracket, Anti-tip (Replaces: 316107200)		Immediately	$ 18.91
NIA	316001017	Screw, Ground Wire (Replaces: 316001003)			$ 3.03
NIB	316205500	Nut, Hex Flange, 3/8 10-32			$ 11.34
NIB	316116000	Screw, Concrete, 1.75", Anti-tip Brkt			$ 12.89
NIC	316541700	Template, Anti-tip	Appelez-nous	-
