SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body

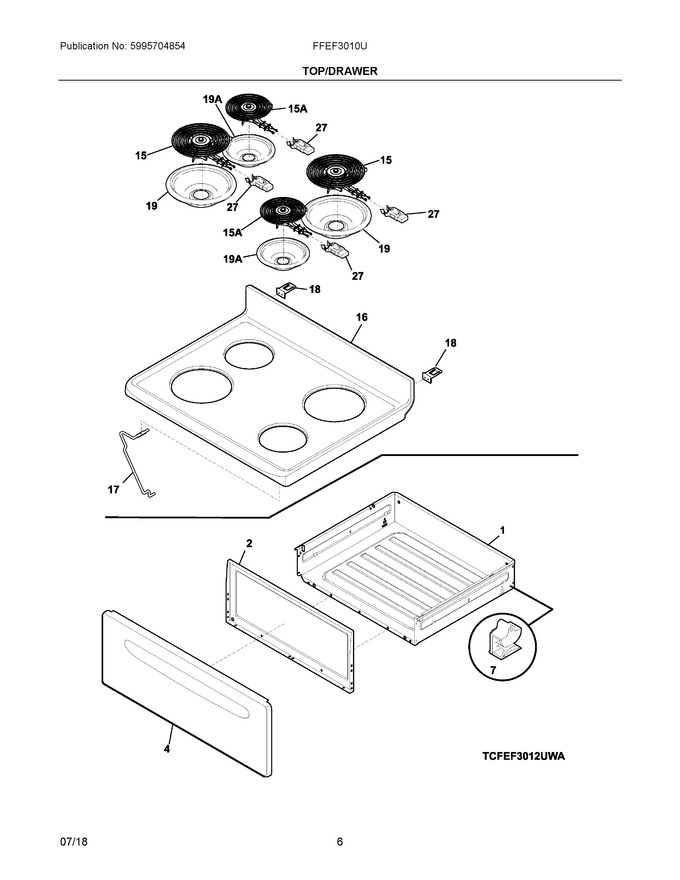

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 110.61
2	5304527989		Liner, Drawer   (Replaces: 316403300)				$ 28.83
4	316403519		Panel, Drawer Front, White				$ 72.45
7	316407402		Glide, Drawer, Rear			Immediately	$ 9.86
15	5304516159		Element, Surface, 8", W/limiter			Immediately	$ 78.12
16	316245402		Main Top, White				$ 478.49
17	316066900		Rod, Maintop Support				$ 66.31
19	A316222301		Pan-surface Element, Large, Black, (2)   (Replaces: 318067075)			Immediately	$ 12.53
27	5304516153		Wiring Harness, W/receptacle, Surface				$ 98.53
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
15A	5304516160		Element, Surface, 6", W/limiter			Immediately	$ 68.96
19A	A316222201		Pan-surface Element, Small, Black, (2)   (Replaces: 318067076)			Immediately	$ 14.64
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NI	5308014215		Screw, 6-20 X 0.312				$ 2.28
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
