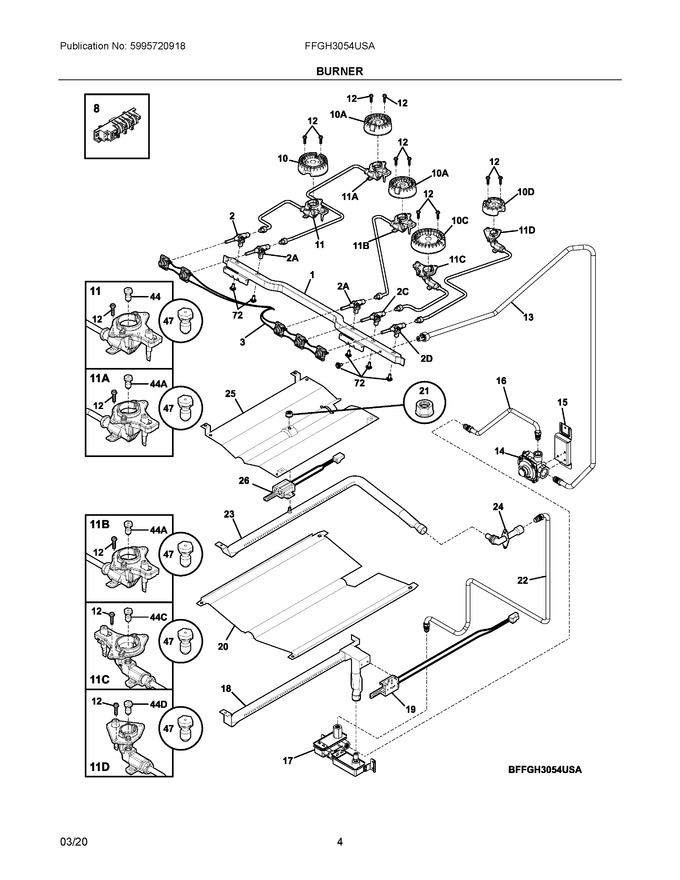

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304514134		Manifold, Pipe				$ 80.09
2	5304506549		Valve, Top Burner, Blue Stem, 1125btu			Immediately	$ 62.34
3	5304528832		Switch Assembly, Ignitor, W/harness   (Replaces: 5304518025)			Immediately	$ 111.91
8	808608804		Spark Module			Immediately	$ 76.06
10	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
11	5304514185		Ignitor/orifice Assy., Top Burner, Lh Front, 12k, W/holder, Tube				$ 33.12
12	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
13	5304514135		Tube, Manifold Supply		Appelez-nous	-
14	316091711		Regulator, Pressure   (Replaces: 5304498819)			Immediately	$ 90.03
15	316603300		Bracket, Regulator				$ 22.75
16	5304514182		Tube, Safety Valve		Appelez-nous	-
17	316031501		Valve, Safety			Immediately	$ 296.26
18	316404400		Burner, Oven				$ 109.10
19	316489403		Ignitor, Bake   (Replaces: 5304508786)			Immediately	$ 113.15
20	5304519024		Baffle, Oven Burner   (Replaces: 316401401)			Immediately	$ 80.39
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
22	5304514183		Tube, Safety Valve, To Mixer		Appelez-nous	-
23	316404302		Burner, Broiler				$ 104.18
24	5304516894		Elbow, Mixer				$ 87.21
25	5304497666		Baffle, Broiler				$ 94.04
26	5304506545		Ignitor, Broiler			Immediately	$ 94.21
44	316527502		Orifice, Burner, 12k				$ 22.68
47	GRLP4		Lp Conversion Kit, W/instructions, Optional, Accessory			Immediately	$ 56.70
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
10A	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10C	316438400		Burner, Sealed, 18.2k			Immediately	$ 83.42
10D	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
11A	5304514186		Ignitor/orifice Assy., Top Burner, Lh Rear, 9.5k, W/holder, Tube				$ 44.75
11B	5304514187		Ignitor/orifice Assy., Top Burner, Center, 9.5k, W/holder, Tube				$ 43.52
11C	5304514188		Ignitor/orifice Assy., Top Burner, Rh Front, 17k, W/holder, Tube				$ 34.44
11D	5304514189		Ignitor/orifice Assy., Top Burner, Rh Rear, 5k, W/holder, Tube				$ 61.43
2A	5304506548		Valve, Top Burner, Green Stem, 850btu			Immediately	$ 82.66
2C	5304507282		Valve, Top Burner, White Stem, 1500btu   (Replaces: 5304506550)			Immediately	$ 53.85
2D	5304506547		Valve, Top Burner, Black Stem, 500btu				$ 69.01
44A	316527500		Orifice, Burner, 9.5k				$ 21.40
44C	316527509		Orifice, Burner, 17k				$ 19.85
44D	316527504		Orifice, Burner, 5k				$ 22.68
NI	316021104		Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt				$ 7.79
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NIA	5304514192		Harness, Wiring, Ignitor Module				$ 50.81
NIA	316401500		Cover, Broil Ignitor				$ 12.89
NIA	316498100		Shield, Wire, Safety Valve				$ 15.17
NIB	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
