SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

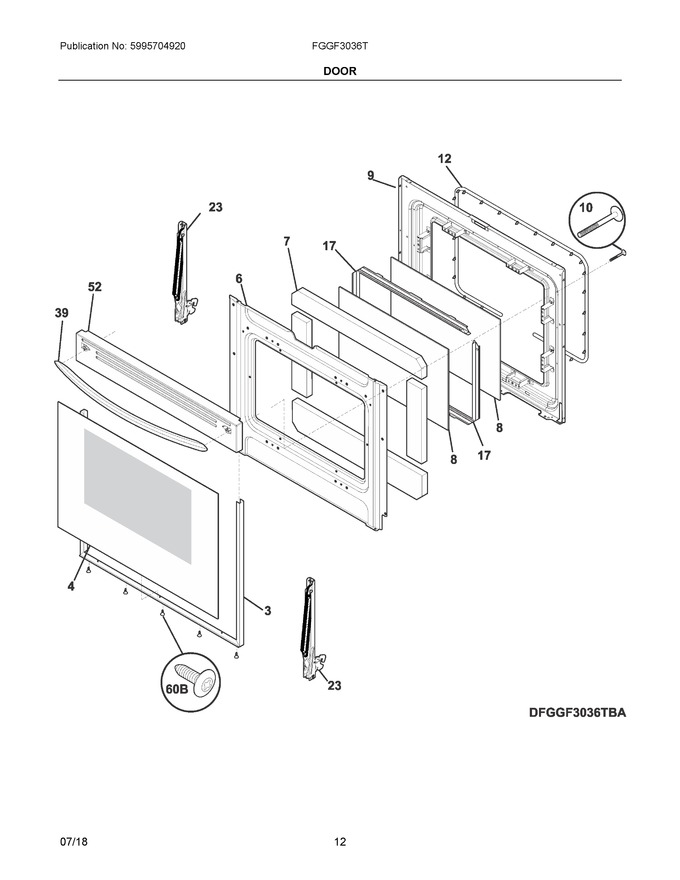

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935379		Trim Kit-door, 3 Sided, White, W/tape		Appelez-nous	-
4	316350103		Glass, Door, White, Outer   (Replaces: 316350102)				$ 130.28
6	316402314		Shield, Wool		Appelez-nous	-
7	316403900		Insulation, Oven Door			Immediately	$ 72.30
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 116.95
9	316423807		Liner-oven Door				$ 171.40
10	316433300		Screw, 10-14 X 2.125", Handle Mtg.			Immediately	$ 27.50
12	5304498835		Seal, Oven Door			Immediately	$ 88.74
17	5304504811		Spacer, Glass			Immediately	$ 25.02
23	316575902		Hinge, Oven Door, Red				$ 102.38
39	316544501		Handle, Door, White			Immediately	$ 131.57
52	5304517841		Cap, Door Trim, White   (Replaces: 5304512113)				$ 144.85
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316483102		Label, Anti-tip				$ 3.56
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18

    View Diagram in Separate Window       Print Part List
