01 - Cover Sheet
02 - Backguard
03 - Body

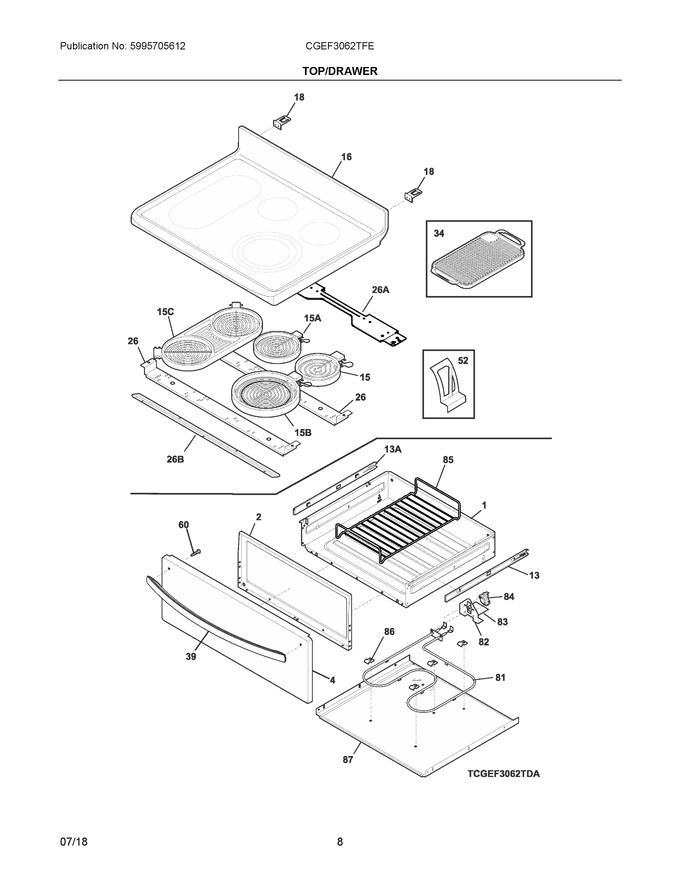

04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408905 | Drawer, Warmer (Replaces: 316408901) |
|
$ 143.45 | |||||
| 2 | 316403303 | Liner, Drawer |
|
$ 67.79 | |||||
| 4 | 5304518011 | Panel, Drawer, Stainless (Replaces: 316352608) |
|
Immediately | $ 160.88 | ||||
| 13 | 316415000 | Glide, Warmer, Inner Rh (Replaces: 316415002) |
|
$ 58.82 | |||||
| 15 | 318178110 | Element, Surface, 6", 1200, (2), Radiant |
|
Immediately | $ 122.86 | ||||
| 16 | 5304513834 | Main Top Asm, Black |
|
$ 395.20 | |||||
| 18 | 316580800 | Bracket-hinge, Main Top |
|
Immediately | $ 9.86 | ||||
| 26 | 5304512926 | Channel, Element Support |
|
$ 46.22 | |||||
| 34 | 5304495353 | Griddle (Replaces: 316432200) |
|
Immediately | $ 166.84 | ||||
| 39 | 316554010 | Handle, Door/drawer, Stainless (Replaces: 316554008) |
|
Immediately | $ 168.44 | ||||
| 52 | 316461700 | Clip, Element Mtg |
|
$ 12.05 | |||||
| 60 | 316433303 | Screw, Handle Mtg., 10-24 X 1.75", (2) (Replaces: 316439500) |
|
Immediately | $ 31.17 | ||||
| 81 | 316437300 | Element, Warmer Drawer |
|
$ 106.17 | |||||
| 82 | 316093200 | Bracket, Element Mtg |
|
- | |||||
| 83 | 316093300 | Shield, Terminal, Warmer Drawer |
|
- | |||||
| 84 | 316093502 | Thermo Disc, Warmer Drawer |
|
$ 51.03 | |||||
| 85 | 807328301 | Rack, Warmer Drawer |
|
$ 87.21 | |||||
| 86 | 316095800 | Clip, Hold Down, (3) |
|
$ 9.93 | |||||
| 87 | 316091900 | Base, Warmer Drawer |
|
$ 221.55 | |||||
| 13A | 316415001 | Glide, Warmer, Inner Lh |
|
Immediately | $ 58.82 | ||||
| 15A | 140273621015 | Element, Surface, Warmer, 100 W (Replaces: 316289800) |
|
Immediately | $ 35.77 | ||||
| 15B | 318297810 | Element, Triple, 1200/2000/3000w, 6"/9"/12 |
|
Immediately | $ 356.54 | ||||
| 15C | 316280701 | Element, Double 7", Surface, 4400w, W/bridge |
|
$ 273.34 | |||||
| 26A | 316498200 | Bracket-support, Chassis, Aluminum |
|
$ 52.33 | |||||
| 26B | 316607600 | Bracket, Chassis Support, Front |
|
$ 52.33 | |||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316418901 | Screw, Trilobe, 10-32 X 5/16", Black |
|
$ 14.18 | |||||
| NI | 5304517568 | Harness, Wiring, Surface |
|
$ 121.91 | |||||
| NI | 5304517539 | Harness, Wiring, Warm Base |
|
- | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316021132 | Screw, 8-18 X 11/16, Black, (3) |
|
$ 12.89 | |||||
| NIA | 5308014215 | Screw, 6-20 X 0.312 |
|
$ 2.28 |
