02 - Console And Control Parts
03 - Cam
04 - Door Parts
05 - Tub And Frame Parts
06 - Motor Pump Parts
07 - Power Dry And Motor Parts
08 - Racks And Trays
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

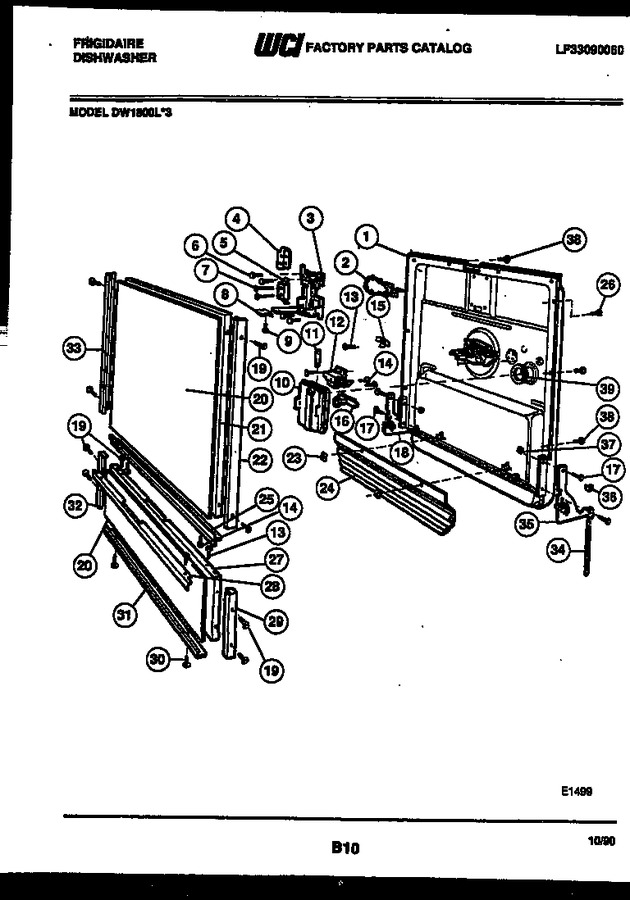

| 1 | 5300809635 | Door Assembly |
|
- | |||||
| 2 | 5300809075 | Tie - Wire |
|
- | |||||
| 3 | 5300807016 | Latch Assembly |
|
- | |||||
| 4 | 5300807450 | Cover - Switch |
|
- | |||||
| 5 | 5300807043 | Switch |
|
- | |||||
| 6 | 5300809029 | Screw-no 8a X 5/8`` |
|
- | |||||
| 7 | 5300808618 | Screw-no 6-32 X 1`` |
|
- | |||||
| 8 | 5300808712 | Knob - Latch |
|
$ 31.71 | |||||
| 9 | 5300808715 | Screw-no 8-32 X 5/16`` |
|
- | |||||
| 10 | 5300806753 | Body Assembly |
|
$ 69.93 | |||||
| 11 | 5300809898 | Plunger-includes Rubber Tip |
|
$ 36.49 | |||||
| 12 | 5300809109 | Bi-metal Assembly |
|
$ 38.48 | |||||
| 13 | 154419403 | Screw-no 8 X 3/8`` (Replaces: 5300808658) |
|
$ 13.10 | |||||
| 14 | 5300807501 | Screw-no 8 X 1/2`` |
|
- | |||||
| 15 | 5300808933 | Terminal - Grounding |
|
- | |||||
| 16 | 5300807673 | Plug-dispenser Fill |
|
- | |||||
| 17 | 5300803311 | Screw-no 10-24 X 5/8`` |
|
- | |||||
| 18 | 5300807539 | Counterbalance Arm Assembly-lh |
|
$ 7.88 | |||||
| 19 | 5300809696 | Screw-no 8 X 3/8`` |
|
- | |||||
| 20 | 3018181 | Inserts-dr/acc Panel-black |
|
- | |||||
| 20 | 3018180 | Inserts-dr/acc Panel-avocado |
|
- | |||||
| 22 | 5300808990 | Trim-rh Door Panel |
|
- | |||||
| 23 | 83212-5 | Speednut |
|
- | |||||
| 24 | 5300809636 | Seal-baffle |
|
- | |||||
| 25 | 5300809637 | Trim-bottom Door |
|
- | |||||
| 26 | 5300808749 | Screw-no 8 X 5/8`` |
|
- | |||||
| 28 | 5300808471 | Trim-top Access Panel |
|
$ 27.35 | |||||
| 29 | 5300808103 | Trim-rh Access Panel |
|
- | |||||
| 30 | 5304480396 | Screw-no 8 X 3/8`` (Replaces: 5300803416) |
|
$ 11.34 | |||||
| 31 | 5300808303 | Trim-bottom Access Panel |
|
- | |||||
| 32 | 5300808104 | Trim-lh Access Panel |
|
- | |||||
| 33 | 5300808991 | Trim-lh Door Panel |
|
- | |||||
| 34 | 5300807601 | Spring-door |
|
$ 74.42 | |||||
| 35 | 5300807538 | Counterbalance Arm Assembly-rh |
|
- | |||||
| 36 | 5300805884 | Pad-spring |
|
- | |||||
| 37 | 5300808470 | Nut |
|
- | |||||
| 38 | 5300809055 | Screw-no 8 X 7/16`` |
|
$ 1.21 | |||||
| 39 | 5300805631 | Grommet-dispenser |
|
$ 6.29 | |||||
| *37776 | 5300808935 | Kit-optional Wood Door |
|
- |
