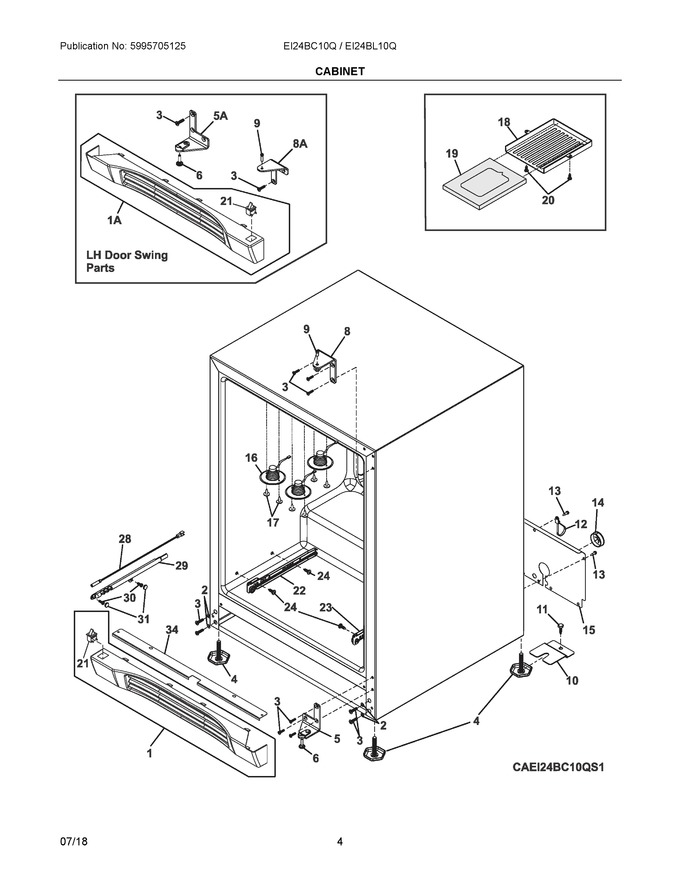

03 - Cabinet


04 - Shelves And Evaporator


05 - Compressor Compartment


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304496728		Washer, Flat, #10 Countersunk		Appelez-nous	-
3	5304496729		Screw, Ph Cntrsnk Hd, #10-32 X 3/4		Appelez-nous	-
4	5304496730		Leg, Leveler				$ 74.08
6	5304496821		Pin, Bottom Hinge		Appelez-nous	-
9	5304496824		Pin, Top Hinge				$ 217.59
10	5304496735		Bracket, Anti-tip		Appelez-nous	-
11	5304496736		Screw, Lag, Hex Head, 5/16-18 X 1		Appelez-nous	-
12	5304496737		Cable Tie, Mount, (pack Of 10)		Appelez-nous	-
13	5304496732		Screw, Hex Washer Head, #10 X 1/2		Appelez-nous	-
14	5304496738		Grommet, Heyco		Appelez-nous	-
15	5304496739		Cover, Access		Appelez-nous	-
16	5304520842		Light Assembly, Led   (Replaces: 241904202)				$ 215.46
17	5304496740		Screw, Ph Flat Head, #4 X 1/2		Appelez-nous	-
18	241904001		Housing, Air Filter				$ 32.61
19	EAFCBF		Filter, Air   (Replaces: 242047801)			Immediately	$ 27.64
20	5304496741		Screw, Tp Ab Truss Hd, #8 X 5/8		Appelez-nous	-
21	5304496827		Sensor, Door, Old Part				$ 254.42
22	5304496828		Slide, Outer, 250mm, Lh		Appelez-nous	-
23	5304496829		Slide, Outer, 250mm, Rh				$ 56.44
24	5304496754		Screw, Csk. Head, #8-18 X 1-1/4		Appelez-nous	-
28	5304496830		Sensor, Temperature				$ 130.41
29	5304496831		Cover, Sensor, Black		Appelez-nous	-
30	5304496762		Screw, Kappet, #8-18 X 1		Appelez-nous	-
31	5304496832		Cap, Snap, Black		Appelez-nous	-
34	5304496742		Bracket, Grille, Black		Appelez-nous	-
1A	5304518413		Grille, Lh Door Swing				$ 354.69
21A	5304507946		Switch, Rocker, New Part Of Kit				$ 73.00
5A	5304496820		Hinge, Door Bottom, Lh Swing		Appelez-nous	-
8A	5304496823		Hinge, Door Top, Lh Swing				$ 195.46
