01 - Cover Sheet

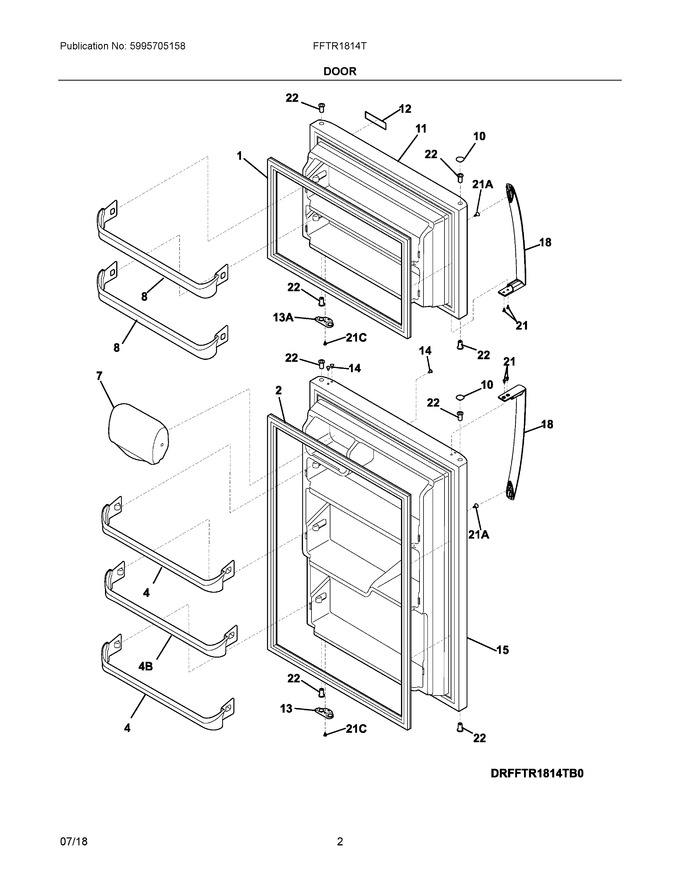

02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242193209 | Gasket-frzr Door, Black, Magnetic |
|
Immediately | $ 197.62 | ||||
| 2 | 242193212 | Gasket-refr Door, Black, Magnetic |
|
Immediately | $ 191.86 | ||||
| 4 | 240534901 | Rack-door |
|
Immediately | $ 47.03 | ||||
| 7 | 240337712 | Door-dairy |
|
Immediately | $ 36.41 | ||||
| 8 | 240534801 | Rack-door |
|
Immediately | $ 49.62 | ||||
| 10 | 240381307 | Plug-button, Gray, Hinge Brg Hole, (2) |
|
Immediately | $ 16.69 | ||||
| 11 | 240410206 | Door-frzr, Stainless, Complete Assy |
|
$ 701.19 | |||||
| 12 | 5304511146 | Nameplate, Chrome |
|
Immediately | $ 47.03 | ||||
| 13 | 240312422 | Door Stop, Black, Ref |
|
$ 15.17 | |||||
| 14 | 240494007 | Plug-button, Gray |
|
Immediately | $ 15.92 | ||||
| 15 | 242178112 | Door-refr, Stainless, Complete Assy (Replaces: 240410309) |
|
$ 597.57 | |||||
| 18 | 5303918824 | Handle-door, Black, W/block & Screw (Replaces: 5304511148) |
|
Immediately | $ 49.29 | ||||
| 21 | 5304515677 | Screw, Truss Hd Quad, #10-16 X .500, Zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507147 | Bearing-hinge, Black, (8) |
|
Immediately | $ 7.59 | ||||
| 13A | 240312415 | Door Stop, Black, Frzr |
|
$ 21.27 | |||||
| 21A | 240521303 | Screw, #10-16 X 1/2 |
|
Immediately | $ 30.20 | ||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 4B | 240534701 | Rack-door, 4b |
|
Immediately | $ 28.80 |
