SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Body


04 - Door


05 - Wiring Diagram


06 - Wiring Diagram

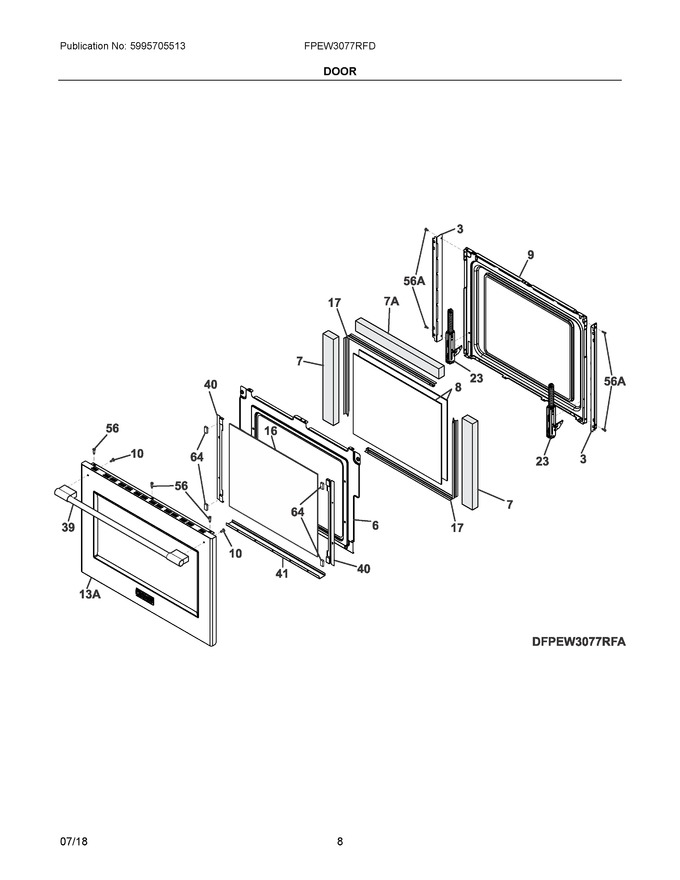

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304520787		Trim, Oven Door, Black, Side Vent   (Replaces: 139036601)				$ 61.66
6	808474502		Shield, Wool, Oven Door				$ 108.45
7	807887502		Insulation, Door, Side, (2)				$ 15.17
8	316502500		Glass, Door, Inner, (2)   (Replaces: 316502502)			Immediately	$ 115.65
9	808474610		Liner, Oven Door, Black   (Replaces: 808474608)			Immediately	$ 129.68
10	5303310510		Screw, 10-24 X 0.625				$ 14.18
16	316502601		Glass, Door, Airwash, Hbii			Immediately	$ 207.85
17	5304503172		Spacer, Door Glass, (2)   (Replaces: 316502101)				$ 25.79
23	139010306		Hinge, Door, Gold, Dual Spring			Immediately	$ 143.33
39	808816703		Handle, Door/drawer, Stainless				$ 182.86
40	5304524357		Bracket, Glass, Air Wash, (2)   (Replaces: 808109202)				$ 41.72
41	5304500644		Support, Glass				$ 19.35
56	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 14.18
64	318165800		Spacer, Glass, Foam				$ 17.72
13A	5304515578		Door Assembly, Outer, Stainless/black, W/trim & Badge				$ 387.14
56A	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
7A	807887501		Insulation, Door, Upper		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	316008401		Washer, Handle Screw, Flat   (Replaces: 5304490894)				$ 11.34

    View Diagram in Separate Window       Print Part List
