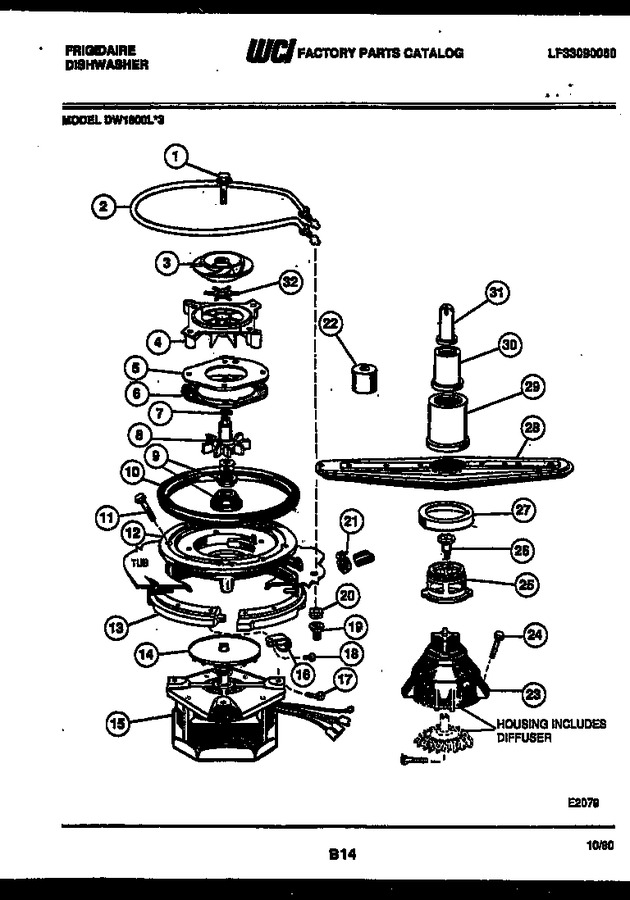

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300806353		Screw-no 10-32 X 2 1/4``				$ 12.06
2	5300806864		Heater-incl Key 19 & 20		Appelez-nous	-
3	5300809918		Impeller-upper				$ 83.45
4	5300809921		Plate-spacer				$ 12.39
5	5300807884		Plate-pump				$ 48.51
6	5300807709		Gasket-pump				$ 54.26
7	5300806521		O-ring				$ 32.42
8	5300809909		Pump Impeller Includes 7&9				$ 71.56
9	5300803903		Seal-water				$ 109.86
10	5300809008		Gasket				$ 4.99
11	3014699		Screw-no 10 X 1``		Appelez-nous	-
12	5300809919		Housing-pump		Appelez-nous	-
13	5300807712		Ring-clamp (2)		Appelez-nous	-
14	5300809366		Watershield Assy				$ 2.26
15	5300809985		Motorassy Incls 1, 7 & 14		Appelez-nous	-
16	240396801		Clamp   (Replaces: 5300808442)				$ 19.13
17	5300809022		Screw-no 10 X 1``		Appelez-nous	-
18	5300807270		Screw-no 8 X 5/8``				$ 6.72
19	154106202		Nut-heater 1/2-20 Brass   (Replaces: 5300806834)			Immediately	$ 18.32
20	5300806833		Grommet-heater				$ 5.34
21	5300808186		Clamp-hose		Appelez-nous	-
22	5300803923		Tool-seat Installation Required When Installing 8, 9 &				$ 57.38
23	5300809953		Upper Housing Assy-includes Diffuser		Appelez-nous	-
24	5300807359		Screw 10 X 1 3/4``		Appelez-nous	-
25	5303943010		Bearing		Appelez-nous	-
26	5300809018		Bolt-spray Arm		Appelez-nous	-
27	5300808924		Shield-bearing				$ 31.61
28	5300808848		Spray Arm Assy				$ 56.07
29	5300808178		Base-tower		Appelez-nous	-
30	5300808179		Section-tower				$ 14.02
31	5300808849		Tip-tower		Appelez-nous	-
32	3100003901		Macerator		Appelez-nous	-
