SELECT A DIAGRAM
01 - Cover Sheet

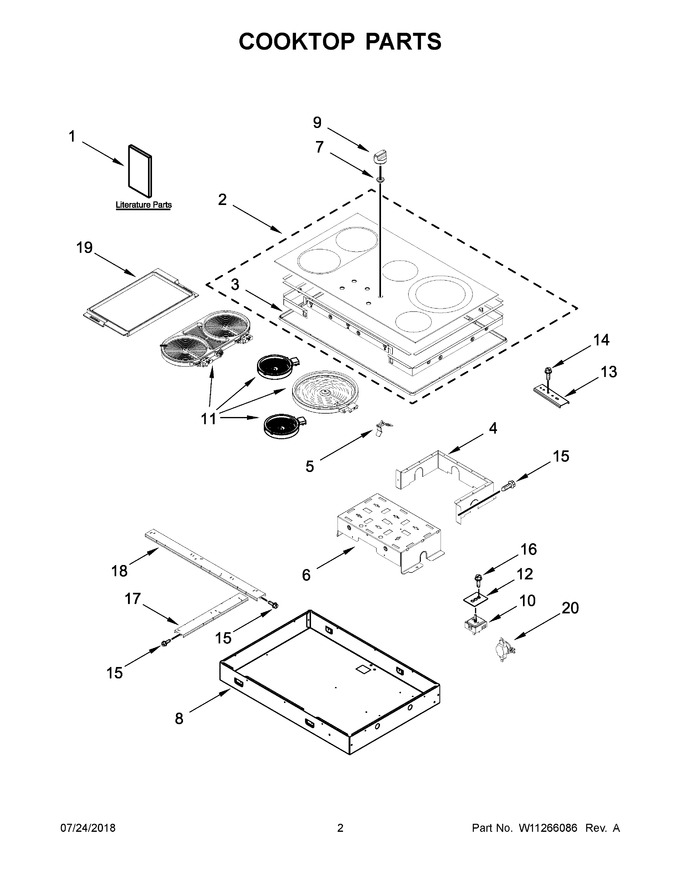

02 - Cooktop Parts
03 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11206696 | Instructions, Installation |
|
- | |||||
| 2 | W11339340 | Cooktop (stainless) (Replaces: W11269300) |
|
Immediately | $ 624.49 | ||||
| 3 | N/P | Trim, Stainless (not Serviced) |
|
- | |||||
| 4 | W10311897 | Sheild, Outer |
|
- | |||||
| 5 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 6 | W11215839 | Plate, Switch |
|
- | |||||
| 7 | WPW10293874 | Grommet (black) (Replaces: W10293874) |
|
Immediately | $ 7.25 | ||||
| 8 | N/P | Box, Burner (not Serviced) |
|
- | |||||
| 9 | W10859808 | Knob, Control (stainless) |
|
$ 68.90 | |||||
| 10 | W10857622 | Switch, Infinite (left Front & Right Rear) (Replaces: W10437092) |
|
Immediately | $ 190.52 | ||||
| 11 | WPW10248259 | Element, Bridge (left Front & Left Rear) (Replaces: W10248259) |
|
$ 320.70 | |||||
| 12 | 3183956 | Seal, Switch Cover |
|
$ 41.81 | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 16 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.26 | ||||
| 17 | W11175341 | Rail, Short |
|
- | |||||
| 18 | W11175343 | Rail, Horizontal |
|
- | |||||
| 19 | W11266554 | Grill/griddle (Replaces: W11192139) |
|
$ 132.29 | |||||
| 20 | W10471482 | Switch, Tod High Limit |
|
Immediately | $ 45.81 | ||||
| 10A | W11661906 | Switch, Infinite (left Rear) (Replaces: W10843843) |
|
Immediately | $ 17.63 | ||||
| 10B | W10911303 | Switch, Infinite (center Rear) (Replaces: W10578768) |
|
Immediately | $ 94.18 | ||||
| 10C | W10917724 | Switch, Infinite (right Front) (Replaces: W10437094) |
|
Immediately | $ 116.42 | ||||
| 11A | W11171119 | Element (1200w) (center Rear) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 11B | WPW10342780 | Element (1300w) (right Front) (Replaces: W10342780) |
|
Immediately | $ 130.79 | ||||
| 11C | W10823727 | Element (3000w) (right Rear) (Replaces: W10711900) |
|
Immediately | $ 293.68 | ||||
| 1A | W11245478 | Instructions, Undercounter Installation |
|
- | |||||
| 1B | W11161590 | Guide, Use & Care |
|
- | |||||
| 1C | W11238364 | Diagram, Wiring |
|
- | |||||
| NI | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 105.67 | ||||
| NI | W11688724 | Insulation, Cooktop (knob) (Replaces: W11183280) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11110559 | Harness, Main |
|
- | |||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.33 | |||||
| NI | WP90767 | Screw (for Main Harness) (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 |
