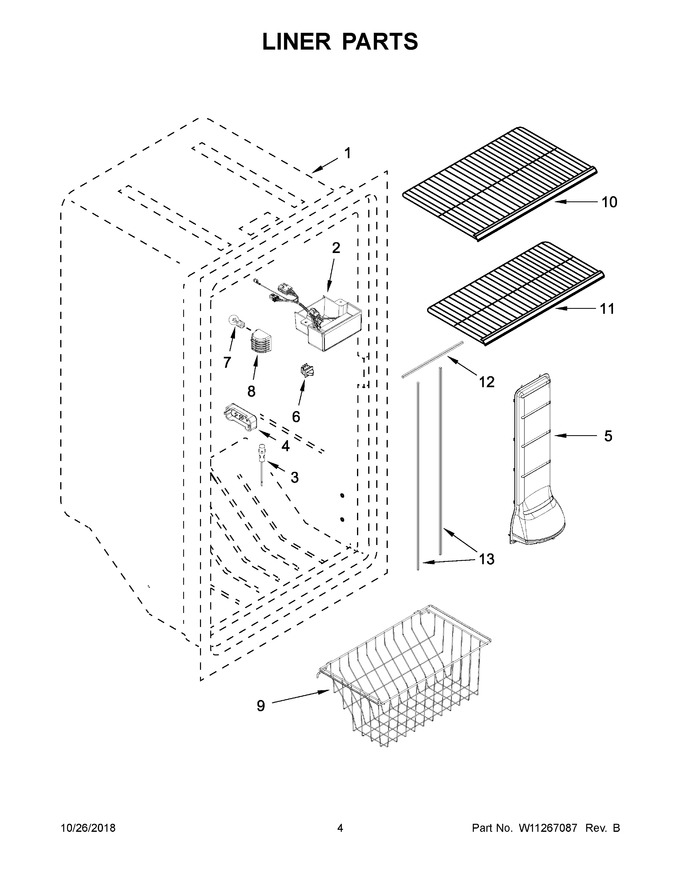

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11496886 | Control Assembly (Replaces: W11221362) |
|
- | |||||
| 3 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 101.55 | ||||
| 4 | W10608692 | Cover, Thermistor |
|
$ 26.77 | |||||
| 5 | W10574272 | Air Tower |
|
Immediately | $ 115.07 | ||||
| 6 | W10755325 | Switch, Light |
|
Immediately | $ 35.29 | ||||
| 7 | W11338583 | Lamp, Led (Replaces: W10805744) |
|
Immediately | $ 91.89 | ||||
| 8 | W10569269 | Lens, Control Box |
|
$ 74.13 | |||||
| 9 | W11293207 | Basket, Deep (Replaces: W10581577) |
|
- | |||||
| 10 | W11397871 | Wire Shelf, Deep (Replaces: W10581580) |
|
Immediately | $ 87.28 | ||||
| 11 | W11578876 | Wire Shelf, Shallow (Replaces: W10581581) |
|
- | |||||
| 12 | WPW10574368 | Gasket, Air Tower (horizontal) (Replaces: W10574564) |
|
$ 7.50 | |||||
| 13 | WPW10574368 | Gasket, Air Tower (vertical) (Replaces: W10574368) |
|
$ 7.50 |
