Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303272305 Button-clock-round Special Order $ 38.80

2 5303272306 Button Electronic (2) Appelez-nous -
3 316008101 Panel-control Appelez-nous -
4 5303272309 Clock T.o.d. Appelez-nous -
5 5303274449 Plate-instr Mtg Appelez-nous -
6 3203076 Cap End-lh Appelez-nous -
7 3203077 Cap End-rh Appelez-nous -
8 5303131237 Support, Backguard Appelez-nous -
9 3204764 Trim-wrapper Appelez-nous -
10 3201701 Trim-lower Splasher (white) Appelez-nous -
11 3131241 Trim-vent Appelez-nous -
12 3131123 Shield, Rear Wall Appelez-nous -
13 3204747 Cap-end-lh-black Appelez-nous -
13 3204746 Cap-end-rh-black Appelez-nous -
14 3204754 Trim-glass Retainer,rh Appelez-nous -
14 3204753 Trim-glass Retainer,lh Appelez-nous -
15 5303208662 Switch-rocker Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

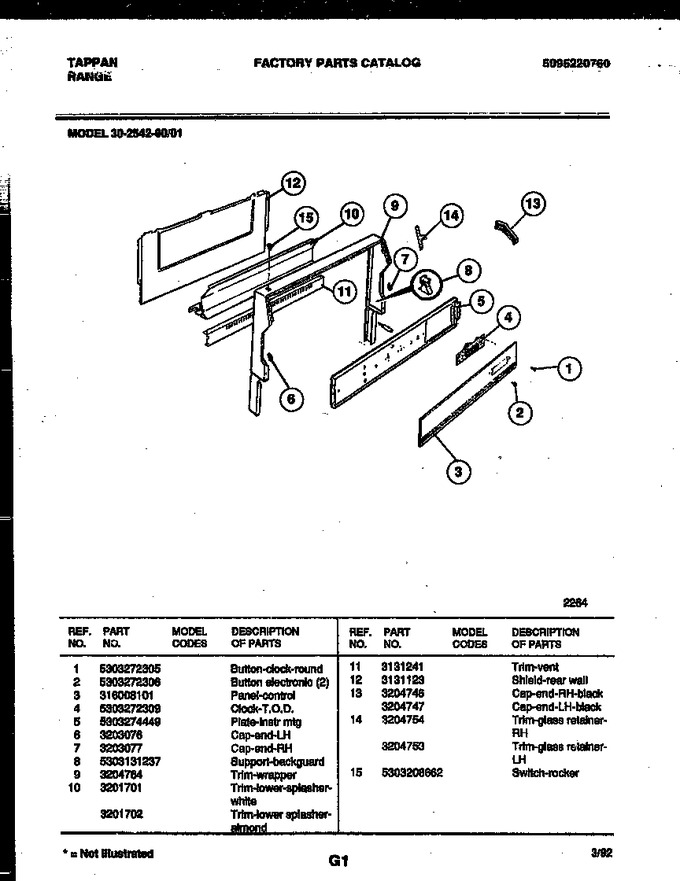

Diagram for 30-2542-00-01
