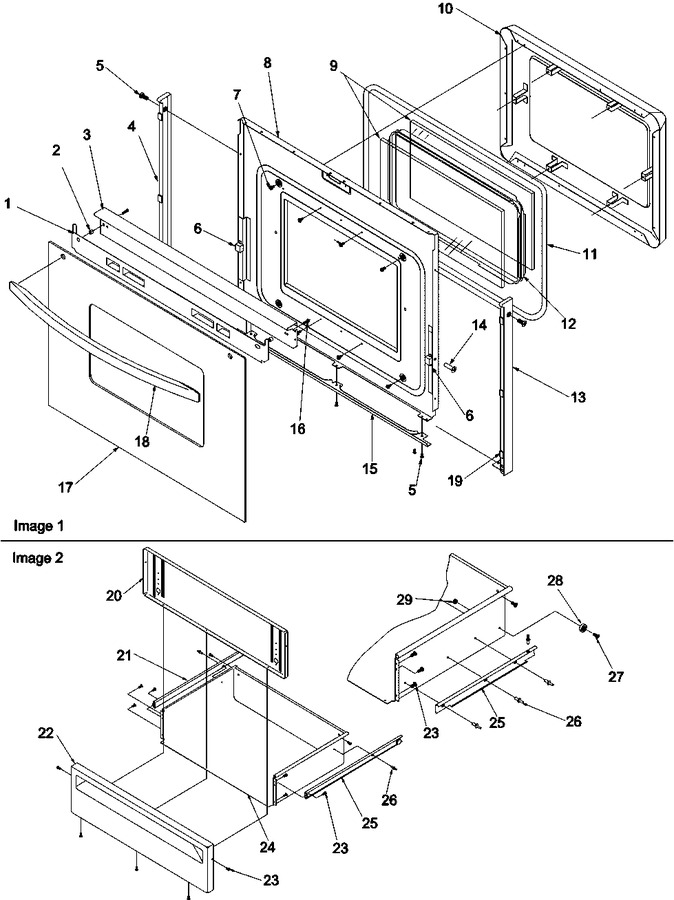

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31833201		Assy, Glass Heat Shield		Appelez-nous	-
2	309461B		Bushing, Handle (blk)		Appelez-nous	-
3	31782102B		Trim, Door Top		Appelez-nous	-
4	309458B		End Cap, Lt (blk)		Appelez-nous	-
5	31750706		Screw, No.8 X .375 Wafer Hd(blk)		Appelez-nous	-
6	Y0309627		Bumper, Rubber		Appelez-nous	-
7	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
8	317028CG		Backer, Oven Door (elec)		Appelez-nous	-
9	Y0317019		Glass, Door		Appelez-nous	-
10	317021CG		Pad, Oven Door		Appelez-nous	-
11	31715902		Gasket, Oven Door (67``)				$ 13.97
12	Y0317020		Frame, Window Pack		Appelez-nous	-
13	309457B		End Cap, Rt (blk)		Appelez-nous	-
14	Y0302648		Rivet, Pop		Appelez-nous	-
15	309460B		Support, Glass (blk)		Appelez-nous	-
16	31750518		Screw, No.10-32 X 1.250`` Pan Hd		Appelez-nous	-
17	315944B		Glass, Oven Dr (black)		Appelez-nous	-
18	31689501B		Handle, Oven Door (blk)		Appelez-nous	-
19	0043184		Tape, Foam		Appelez-nous	-
20	309179B		Liner, Drawer Panel (blk)		Appelez-nous	-
22	309177W		Panel, Drawer (wht)		Appelez-nous	-
23	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
24	31733502W		Drawer, Storage (wht)		Appelez-nous	-
25	31733301		Track, Storage Drawer		Appelez-nous	-
26	Y0097822		Rivet, Pop		Appelez-nous	-
27	31750717		Bolt, Shoulder 10-32		Appelez-nous	-
28	31733401		Roller, Drawer				$ 5.75
29	M0282009		Nut   (Replaces: 31750128)				$ 12.06
NI	Y0309434		Label, Cleaning Caution Fr/eng		Appelez-nous	-
NI	Y0309772		Insulation,oven Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
