View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel
03 - Upper Oven
04 - Lower Oven
05 - Doors
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:

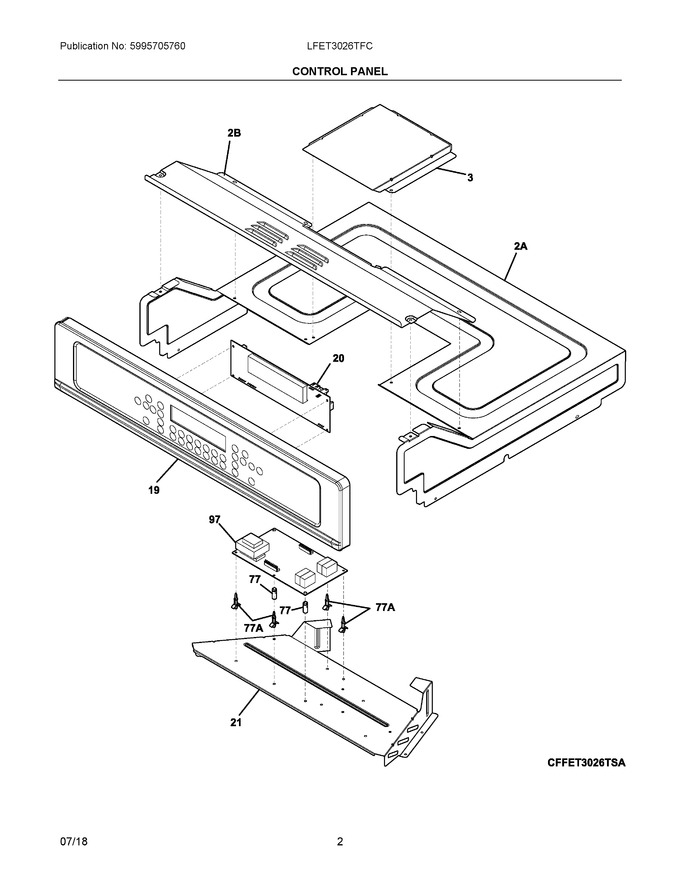

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 318577801 | Box, Fan Service |
|
- | |||||
| 19 | 5304510994 | Control Panel Assembly, Steel/glass, Stainless/black, W/touch Pad |
|
- | |||||
| 20 | 5304513223 | Controller, Electronic, Es615w15 |
|
- | |||||
| 21 | 139028000 | Bracket, Mounting |
|
$ 63.00 | |||||
| 77 | 316247900 | Spacer, Power Board |
|
$ 44.65 | |||||
| 97 | 316443913 | Board, Relay, Dual Oven |
|
$ 370.44 | |||||
| 2A | 139017901 | Cover, Oven Top |
|
$ 127.56 | |||||
| 2B | 139017801 | Cover, Control Access |
|
$ 59.16 | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 5304517327 | Harness, Wiring, Control Panel |
|
$ 83.42 | |||||
| NIA | 318165800 | Spacer, Glass, Foam |
|
$ 17.72 | |||||
| NIA | 5304401490 | Screw, 6-18 X 1, (2) |
|
- |
