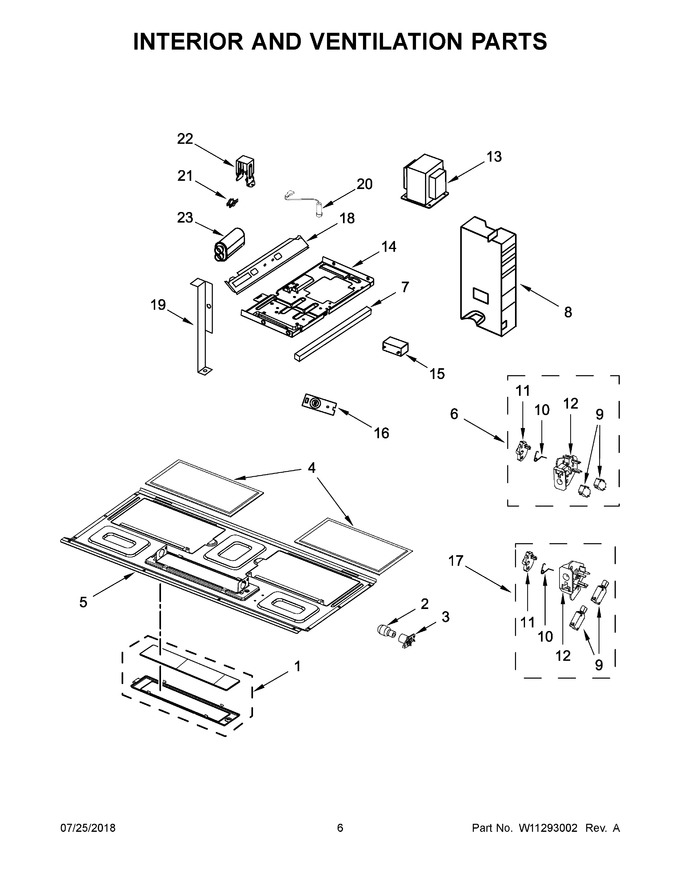

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10240330		Assembly, Lamp Glass And Holder				$ 6.47
2	8206232A		Lamp, 40 Watt   (Replaces: 8206232)			Immediately	$ 6.61
3	W10210871		Holder, Lamp			Immediately	$ 5.75
4	W10208631A		Filter, Grease   (Replaces: W10208631)			Immediately	$ 29.33
5	W10245196		Plate, Bottom				$ 220.35
6	W11252186		Assembly, Upper Interlock (includes Switches)   (Replaces: W11219774)			Immediately	$ 21.11
7	W10571179		Seal, Cooling		Appelez-nous	-
8	W11302941		Air Guide, Lower   (Replaces: W10771884)				$ 74.39
9	N/P		Switches, Interlock (not Serviced, Order Interlock Assemblies)		Appelez-nous	-
10	W10156812		Spring, Interlock			Immediately	$ 10.93
11	W10562613		Plate, Cam			Immediately	$ 16.05
12	WP8206419		Support, Interlock (top)   (Replaces: 8206419)			Immediately	$ 20.13
13	W10836753		Transformer, High Voltage   (Replaces: W10754523)			Immediately	$ 212.45
14	W10827115		Chassis				$ 120.14
15	W11405832		Capacitor, Hood Motor   (Replaces: W10605896)				$ 24.52
16	W10163422		Thermistor				$ 154.03
17	W11252187		Assembly, Lower Interlock (includes Switches)   (Replaces: W11219776)			Immediately	$ 32.74
18	W10904020		Support, Ntc		Appelez-nous	-
19	W10313275		Bracket, Top Cavity				$ 30.53
20	W11256462		Diode, High Voltage   (Replaces: W11222648)			Immediately	$ 29.88
21	W10269232		Thermostat, Cavity				$ 63.67
22	W10532063		Bracket, Capacitor				$ 25.45
23	W10850446		Capacitor, High Voltage   (Replaces: W10343300)				$ 167.89
12A	WPW10156813		Support, Interlock (bottom)   (Replaces: W10156813)			Immediately	$ 7.26
