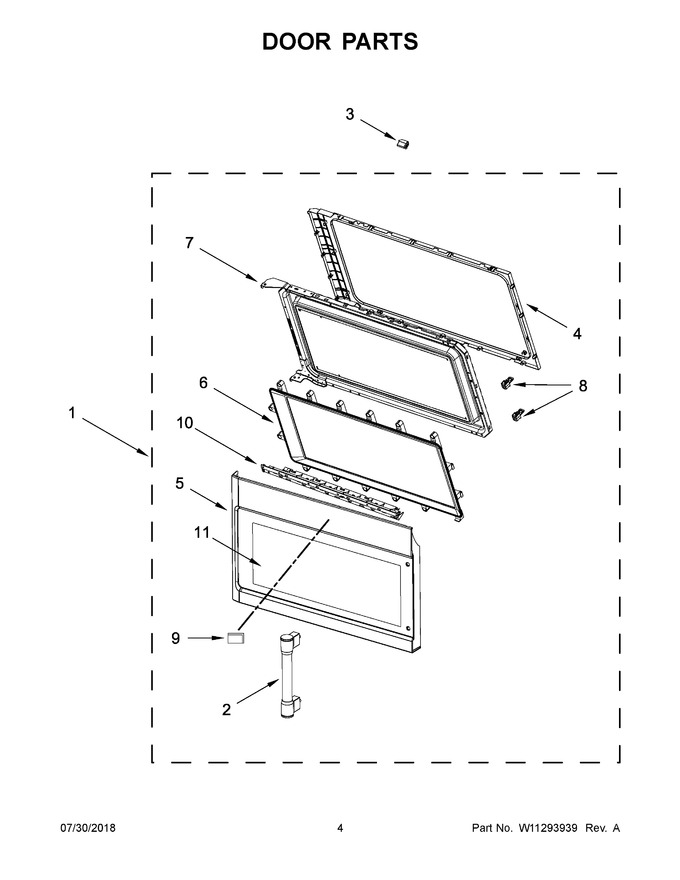

03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11031959 | Door, Complete (white) |
|
$ 344.38 | |||||
| 2 | W10890417 | Handle (white) |
|
- | |||||
| 3 | W10643974 | Stopper, Door |
|
$ 19.41 | |||||
| 4 | W10648086 | Frame, Inner |
|
$ 86.25 | |||||
| 5 | W10860851 | Assembly, Door Frame (white) |
|
- | |||||
| 6 | W10860860 | Plate, Steam Protection |
|
- | |||||
| 7 | W11432221 | Foil, Door (Replaces: W10891966) |
|
- | |||||
| 8 | W10740455 | Hooks, Door (Replaces: W10489272) |
|
Immediately | $ 48.17 | ||||
| 9 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 36.31 | ||||
| 10 | W10892376 | Trim, Door (white) |
|
- | |||||
| 11 | W11034211 | Assembly, Door Glass (white) (Replaces: W10860864) |
|
$ 275.27 | |||||
| 10A | W10892375 | Trim, Door (black) |
|
- | |||||
| 11A | W11034213 | Assembly, Door Glass (black) (Replaces: W10860865) |
|
$ 275.27 | |||||
| 1A | W11031960 | Door, Complete (black) |
|
$ 357.08 | |||||
| 1B | W11031958 | Door, Complete (stainless) |
|
$ 375.81 | |||||
| 2A | W11034217 | Handle (black) (Replaces: W10890418) |
|
- | |||||
| 2B | W11034214 | Handle (stainless) (Replaces: W10858177) |
|
$ 162.80 | |||||
| 5A | W10860854 | Assembly, Door Frame (black) |
|
$ 313.46 |
