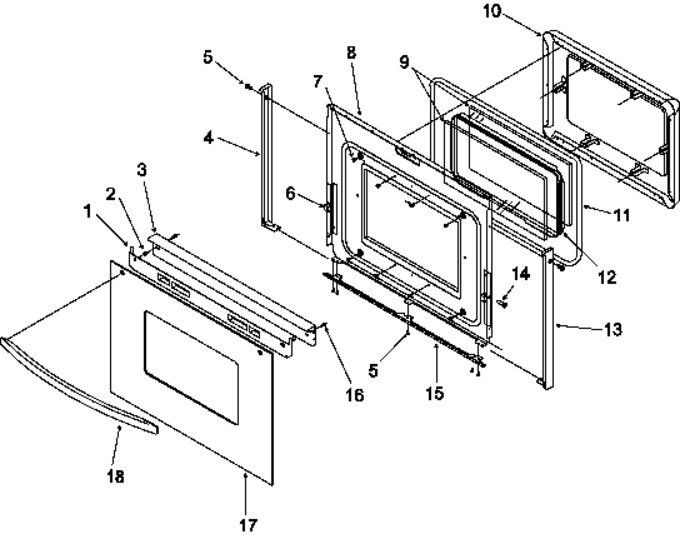

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316981W | Assy, Glass Heat Shield |
|
- | |||||
| 2 | Y0309461 | Bushing, Handle (nal) |
|
- | |||||
| 3 | 316980W | Trim, Door Top (wht) |
|
- | |||||
| 4 | 309458W | End Cap, Lt (wht) |
|
- | |||||
| 5 | W11245710 | Screw, No.8-18x.406-.344 Waferhd (Replaces: Y0059445) |
|
Immediately | $ 12.65 | ||||
| 6 | Y0309627 | Bumper, Rubber |
|
- | |||||
| 7 | Y0309016 | Screw, No.8-18 X 3/8 P Hex Wsh T |
|
- | |||||
| 8 | 315986CG | Liner, Oven Door (elec) |
|
- | |||||
| 9 | Y0309074 | Glass Window 18`` X 11`` X 3/16`` |
|
- | |||||
| 10 | 309781CG | Pad, Oven Door |
|
- | |||||
| 11 | 31715902 | Gasket, Oven Door (67``) |
|
$ 13.97 | |||||
| 12 | Y0309071 | Frame, Window Pack |
|
- | |||||
| 13 | 309457W | End Cap, Rt (wht) |
|
- | |||||
| 14 | Y0302648 | Rivet, Pop |
|
- | |||||
| 15 | 309460W | Support, Glass (wht) |
|
- | |||||
| 16 | Y0316793 | Screw, 10-32 X 1.250`` Pan Hd |
|
- | |||||
| 17 | 315944W | Glass, Oven Dr (white) |
|
- | |||||
| 18 | 316792W | Handle, Door (wht) |
|
- | |||||
| NI | Y0309772 | Insulation,oven Door |
|
- | |||||
| NI | Y0309434 | Label, Cleaning Caution Fr/eng |
|
- |
