01 - Cover Sheet

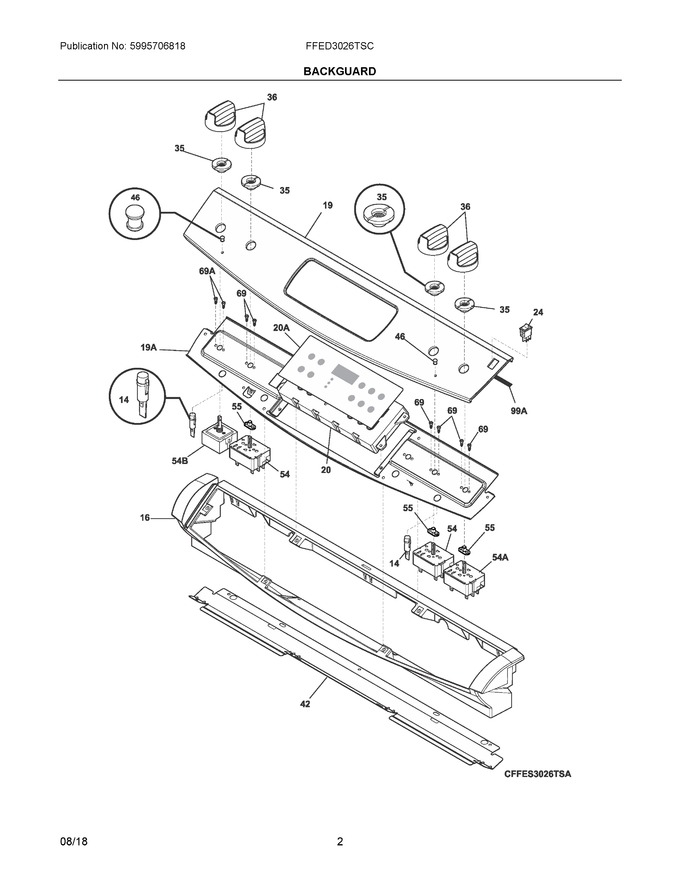

02 - Backguard


03 - Body


04 - Main Top


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	318044831		Light, Indicator, Natural, (4)				$ 16.69
16	318299102		Console, Assy., Black				$ 494.96
19	5304511045		Control Panel, Assembly, Stainless/black		Appelez-nous	-
20	5304511028		Controller, Electronic, Es300				$ 404.22
24	5304515643		Switch, Rocker, Black		Appelez-nous	-
35	318183105		Support, Glass, Black, (4)				$ 21.37
36	5304511055		Knob, Control, Black		Appelez-nous	-
42	318574701		Support, Control Panel, Black				$ 62.69
46	318228301		Lens, Indicator Light				$ 11.29
54	318293830		Switch, Surface Element, Small, (2)			Immediately	$ 94.36
55	318402901		Bushing, Switch				$ 17.72
69	5304480396		Screw, 8-32 X 3/8", (4)				$ 11.34
19A	9910999SI		Panel, Control Mtg.   (Replaces: 318224401)		Appelez-nous	-
20A	316419145		Overlay, Clock, Black, Es300			Immediately	$ 50.06
54A	318293831		Switch, Surface Element, Large			Immediately	$ 92.69
54B	318191023		Switch, Infinite, Dual			Immediately	$ 70.64
69A	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
99A	318223900		Gasket, Dark Grey			Immediately	$ 82.80
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5304517804		Harness, Wiring, Backsplash				$ 80.66
NI	5304517808		Harness, Wiring, Display		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
