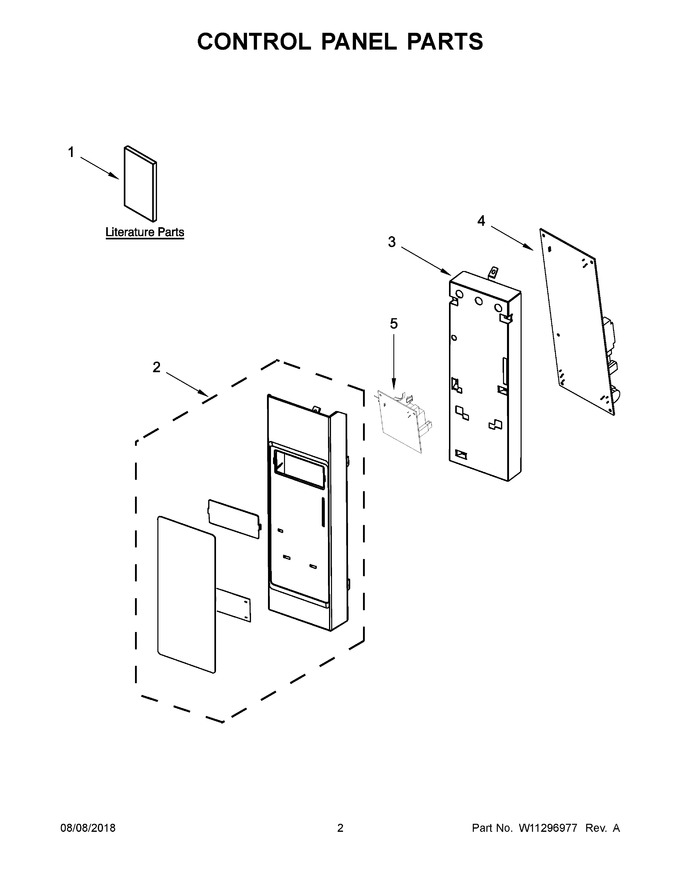

02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10823837 | Installation Instructions |
|
- | |||||
| 2 | W11117593 | Assembly, Control Panel (white) |
|
$ 299.14 | |||||
| 3 | W10639186 | Backer, Control Panel |
|
$ 31.91 | |||||
| 4 | W11192681 | Pcba, Appliance Control Unit (Replaces: W11133304) |
|
Immediately | $ 235.40 | ||||
| 5 | W11192682 | Pcba, User Interface (Replaces: W11127564) |
|
$ 270.12 | |||||
| 1A | W11047550 | Use And Care Guide |
|
- | |||||
| 1B | W11037859 | Quick Reference Guide |
|
- | |||||
| 1C | W11178993 | Tech Sheet |
|
- | |||||
| 2A | W11117594 | Assembly, Control Panel (black) |
|
$ 289.03 | |||||
| 2B | W11040881 | Assembly, Control Panel (stainless) |
|
Immediately | $ 289.03 | ||||
| 2C | W11040882 | Assembly, Control Panel (black Stainless) |
|
$ 299.14 |
