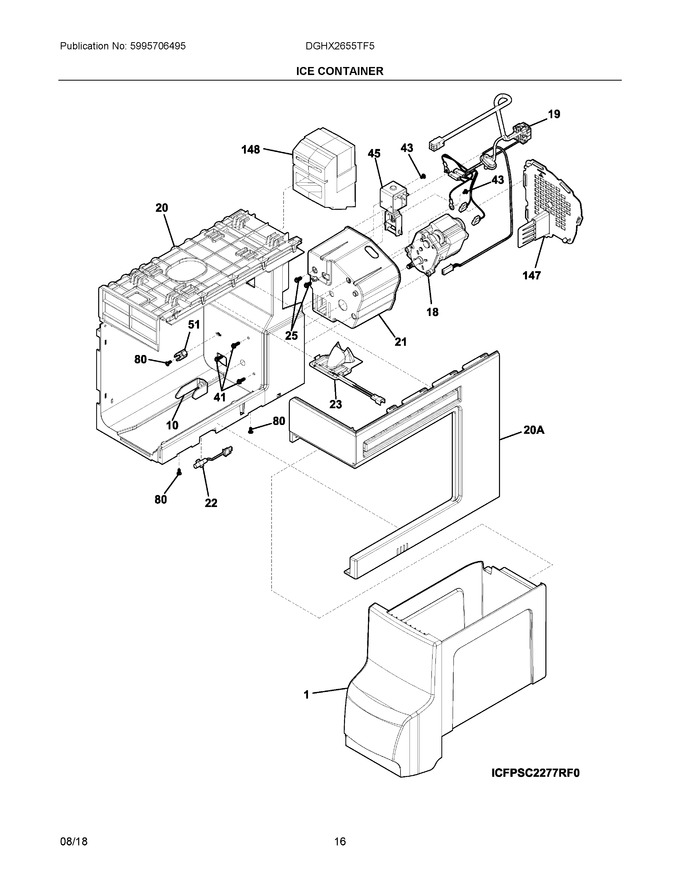

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304522718 | Ice Container Assy, W/moving Parts (Replaces: 5304504446) |
|
$ 295.00 | |||||
| 10 | 241829001 | Bar-drive |
|
$ 58.55 | |||||
| 18 | 241816602 | Motor-auger |
|
Immediately | $ 154.76 | ||||
| 19 | 5304521770 | Harness, Slim Twist, Icemaker (Replaces: 808356401) |
|
$ 86.71 | |||||
| 20 | 242303501 | Housing, Slim Ice Maker |
|
$ 113.76 | |||||
| 21 | 242305203 | Housing Cover, Motor Solenoid (Replaces: 242305201) |
|
$ 25.31 | |||||
| 22 | 240597220 | Sensor, Temperature, 10k, Ntc (Replaces: 240597203) |
|
Immediately | $ 5.16 | ||||
| 23 | 5304504455 | Fill Cup, W/heater |
|
Immediately | $ 97.07 | ||||
| 25 | 240555005 | Screw, Hex Washer Head, 8-32 X 3/8 |
|
$ 11.38 | |||||
| 41 | 243298401 | Screw |
|
- | |||||
| 43 | 218359202 | Screw, Pan Head, 8-32 X 0.250 |
|
$ 10.63 | |||||
| 45 | 241675704 | Solenoid Assy, 115v |
|
Immediately | $ 65.71 | ||||
| 51 | 242095501 | Pin-anti Twist Bkt Gen Ii Im |
|
Immediately | $ 20.56 | ||||
| 80 | 241953908 | Screw, Quad Hilo, #8-18 |
|
$ 4.26 | |||||
| 147 | 140041623020 | Motor, Cover (Replaces: 5304504451) |
|
- | |||||
| 148 | 5304504447 | Duct Air, Slim Icemaker, Assembly |
|
$ 20.48 | |||||
| 20A | 242303601 | Housing, Outer Cover, Slim Icemaker |
|
$ 116.02 | |||||
| NI | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| NIA | 241519401 | Clip, Sensor |
|
$ 8.51 |
