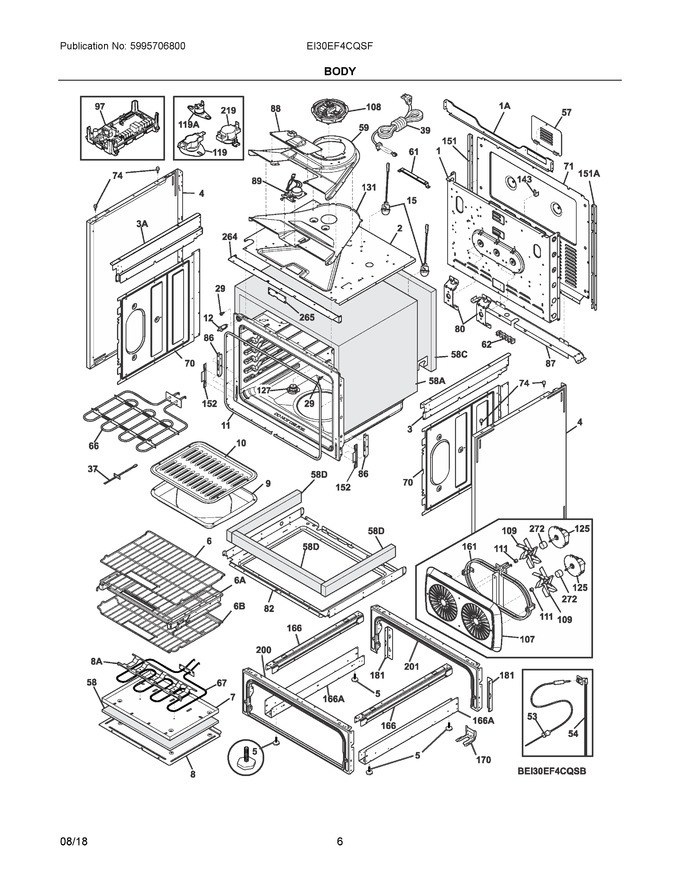

03 - Body
04 - Top/drawer
05 - Door
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 139017310 | Panel, Main Back |
|
- | |||||
| 2 | 139028105 | Shield, Insulation, Top |
|
- | |||||
| 3 | 809128202 | Panel, Upper Side, Rh |
|
- | |||||
| 4 | 807226106 | Panel, Bodyside, Black, (2) |
|
$ 136.69 | |||||
| 5 | 316498903 | Leveling Leg |
|
$ 12.13 | |||||
| 6 | 5304514983 | Rack, Oven, W/handle |
|
$ 137.58 | |||||
| 7 | 318297303 | Box, Bake Element |
|
$ 125.84 | |||||
| 8 | 318359500 | Panel, Service |
|
$ 140.09 | |||||
| 9 | 316081901 | Pan, Broiler, Cobalt Blue |
|
$ 74.32 | |||||
| 10 | 316082001 | Insert, Broiler Pan, Cobalt Blue |
|
$ 53.09 | |||||
| 11 | 807545502 | Seal, Oven Door, Gray |
|
$ 140.34 | |||||
| 12 | 808136601 | Switch, Light, Door (Replaces: 318394802) |
|
Immediately | $ 44.04 | ||||
| 15 | 5304528790 | Lamp Assembly, Round, Halogen, W/lens, W/bulb (Replaces: 139009000) |
|
Immediately | $ 20.56 | ||||
| 29 | 316517601 | Bumper, Main Front, Cobalt Blue |
|
- | |||||
| 37 | 5304504897 | Sensor, Oven Temp Probe |
|
Immediately | $ 48.13 | ||||
| 39 | 318113112 | Cord, Electric |
|
$ 73.00 | |||||
| 53 | 5304503737 | Probe, Meat, Black (Replaces: 5304516490) |
|
$ 99.33 | |||||
| 54 | 139017203 | Receptacle Assy, Meat Probe (Replaces: 5304514886) |
|
Immediately | $ 153.09 | ||||
| 57 | 316283600 | Cover, Access |
|
$ 12.50 | |||||
| 58 | 318294912 | Insullation, Bake Element |
|
$ 97.17 | |||||
| 59 | 139027600 | Duct, Cooling Fan, Upper |
|
$ 85.76 | |||||
| 61 | 5304497190 | Bracket, Wire, (2) |
|
- | |||||
| 62 | 5303935061 | Terminal Block Kit |
|
- | |||||
| 66 | 5304521861 | Element, Broil, 8 Pass, 4000w (Replaces: 139000900) |
|
Immediately | $ 90.25 | ||||
| 67 | 5304521880 | Element, Bake, 2500w, 8 Pass (Replaces: 139026700) |
|
Immediately | $ 114.97 | ||||
| 70 | 139000601 | Shield, Insulation, Sides, (2) |
|
$ 72.05 | |||||
| 71 | 809123201 | Shield, Rear, Lower |
|
$ 63.08 | |||||
| 74 | 318141910 | Bumper, Bodyside, (4) |
|
$ 3.68 | |||||
| 80 | 139021101 | Bracket, Support, Chassis/fan |
|
$ 14.89 | |||||
| 82 | 139008201 | Shield, Insulation, Lower |
|
- | |||||
| 86 | 318561100 | Receptacle, Hinge, (2) |
|
$ 21.23 | |||||
| 87 | 318260636 | Bracket, Cable Mtg. |
|
- | |||||
| 88 | 5304506964 | Cover, Latch Motor |
|
$ 24.10 | |||||
| 89 | 139078302 | Motor, Latch Assembly |
|
Immediately | $ 106.70 | ||||
| 97 | 316472807 | Circuit Board, Assembly, Ovc1, W/housing (Replaces: 316472802) |
|
Immediately | $ 366.77 | ||||
| 107 | 139001502 | Cover, Dual Fan, Cobalt, Convection |
|
$ 80.00 | |||||
| 108 | 318575612 | Motor Assembly, Cooling Fan |
|
Immediately | $ 196.61 | ||||
| 109 | 318398302 | Blade, Fan, Convection (Replaces: 139009100) |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut, Fan Retainer |
|
Immediately | $ 19.13 | ||||
| 119 | 318578506 | Thermostat, Safety, 105c |
|
Immediately | $ 58.19 | ||||
| 125 | 139008501 | Motor, Convection Fan |
|
Immediately | $ 160.06 | ||||
| 127 | 5304538693 | Tube Assembly, Vent, W/catalyst (Replaces: 139042600) |
|
Immediately | $ 10.03 | ||||
| 131 | 139027700 | Duct, Cooling Fan, Lower |
|
$ 73.00 | |||||
| 143 | 318172904 | Support, Wire |
|
- | |||||
| 151 | 809124101 | Bracket, Extension, Lh, Main Back |
|
- | |||||
| 152 | 318338520 | Bracket, Lateral Panel, (2) |
|
$ 18.38 | |||||
| 161 | 5304522063 | Element, Convection, Dual, 2500w (Replaces: 139006600) |
|
$ 132.71 | |||||
| 166 | 318298410 | Bracket, Base Support, (2) |
|
$ 75.83 | |||||
| 170 | 5304486410 | Kit, Anti Tip, W/brkt & Instru |
|
$ 158.50 | |||||
| 181 | 809201001 | Bracket, Rear Panel, (2) |
|
- | |||||
| 200 | 318298232 | Frame, Drawer, Black, Front |
|
$ 95.13 | |||||
| 201 | 318298233 | Frame, Drawer, Black, Rear |
|
$ 45.36 | |||||
| 219 | 318003400 | Thermostat, Safety |
|
$ 237.43 | |||||
| 264 | 807057104 | Trim, Vent Support, Black |
|
- | |||||
| 265 | 807050701 | Trim, Cover, Black, Vent Motor |
|
- | |||||
| 272 | 139021700 | Tube, Convection Fan |
|
$ 17.72 | |||||
| 119A | 318005229 | Switch, Thermal Cutout |
|
Immediately | $ 50.04 | ||||
| 151A | 809124102 | Bracket, Extension, Rh, Main Back |
|
- | |||||
| 166A | 5304511884 | Bracket, Base Support, Lower |
|
$ 65.98 | |||||
| 1A | 809128101 | Panel, Main Back, Upper |
|
- | |||||
| 3A | 809128201 | Panel, Upper Side, Lh |
|
$ 57.17 | |||||
| 58A | 139001700 | Insulation, Oven Wrapper, Top & Sides |
|
- | |||||
| 58C | 139020202 | Insulation, Oven Back |
|
$ 44.46 | |||||
| 58D | 139020301 | Insulation, Sides, (2) |
|
- | |||||
| 6A | 139013314 | Rack Assembly, Gliding, W/handle |
|
$ 236.99 | |||||
| 6B | 139012400 | Rack, Oven, Offset, W/handle |
|
$ 181.34 | |||||
| 8A | 318313601 | Bracket, Bake Element |
|
$ 71.45 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 5303289910 | Screw, Truss Sqdr, 8a X 1", 62* |
|
$ 5.67 | |||||
| NI | 316581300 | Retainer, Wire |
|
$ 4.26 | |||||
| NI | 5304517745 | Harness-main E 30 Fcfs S3 |
|
- | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 5304491110 | Screw, Trus Hd Nickl, 8-32 X 1/4 |
|
- | |||||
| NIA | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NIA | 318946500 | Bulb, Halogen, G9, 25w, 120v |
|
Immediately | $ 60.44 | ||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 | |||||
| NIA | 807597603 | Screw, Self Tapping, 8-18 X 11/32, (4) |
|
$ 9.22 | |||||
| NIB | 316205500 | Nut, Hex Flange, 3/8 10-32 |
|
$ 11.34 |
