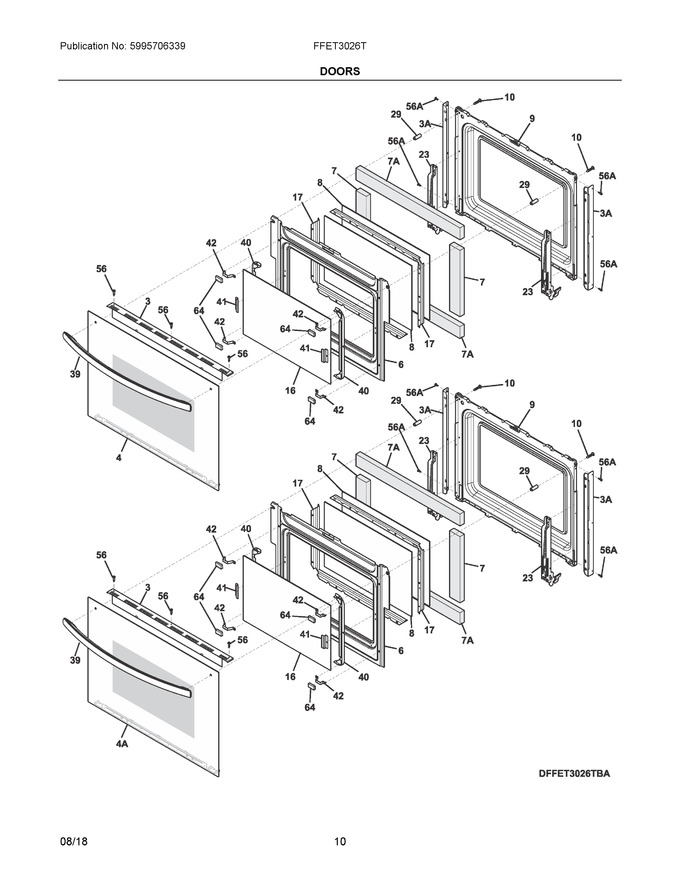

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	139023301		Trim, Oven Door, Black, Upper				$ 54.60
4	5304510849		Glass Assembly, Door, White, W/trim				$ 360.23
6	139006905		Baffle, Door				$ 121.34
7	318372017		Insulation, Door				$ 16.30
8	5304503232		Glass, Oven Door, Inner, Hrc1   (Replaces: 316117503)				$ 116.95
9	139000405		Liner, Oven Door				$ 115.27
10	316433304		Screw, 10-14 X 1.920", Handle Mtg.				$ 14.02
16	316446401		Glass, Oven Door, Airwash   (Replaces: 316446400)			Immediately	$ 125.13
17	318264731		Spacer, Glass, (2)				$ 72.05
23	316575915		Hinge, Oven Door, Lime   (Replaces: 316575914)				$ 166.09
29	139023400		Spacer, Door Handle, (2)				$ 20.48
39	5304522047		Handle, Door, White   (Replaces: 5304507385)			Immediately	$ 122.63
40	318242702		Bracket, Glass Holder, Door, (2)				$ 19.72
41	318370602		Bracket, Glass Panel, (2)				$ 13.65
42	318382302		Bracket, Glass Retainer, (4)				$ 50.81
56	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
64	318165800		Spacer, Glass, Foam				$ 17.72
3A	139014401		Trim, Oven Door, Black, Side, (2), Vented				$ 32.62
4A	5304510852		Glass Assembly, Door, White, Lower, W/trim		Appelez-nous	-
56A	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
7A	318372016		Insulation, Door				$ 17.72
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
