01 - Cover Sheet


02 - Control Panel Parts


03 - Door Parts


04 - Interior And Ventilation Parts

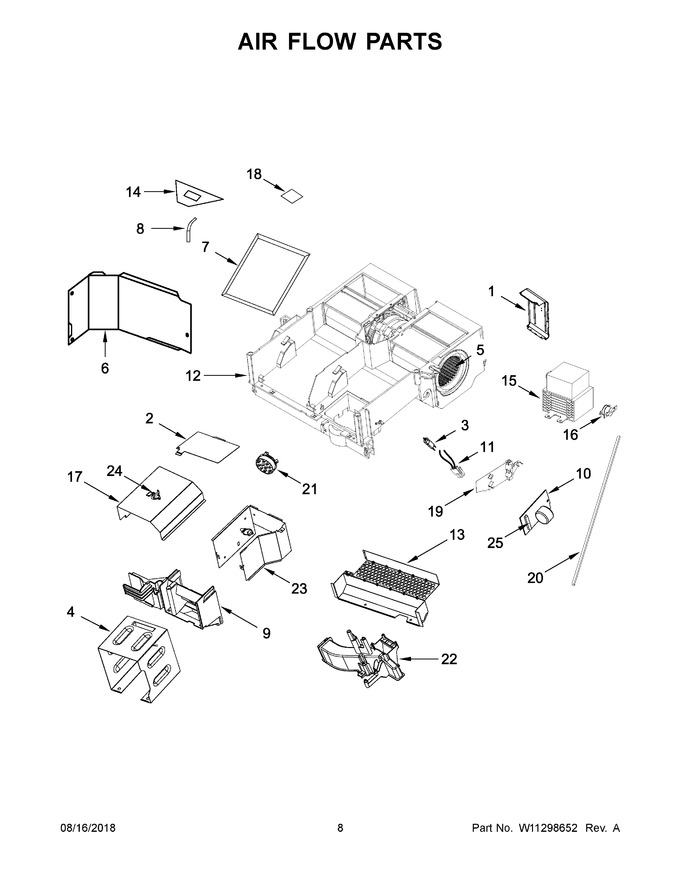

05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10631698		Deflector, Air		Appelez-nous	-
2	8206382		Cover, Lamp				$ 7.87
3	W10709921		Lamp, Halogen			Immediately	$ 19.10
4	W10556824		Housing, Damper		Appelez-nous	-
5	W11613599		Motor, Fan   (Replaces: W10830695)			Immediately	$ 171.78
6	W10533487		Plate, Air Guide		Appelez-nous	-
7	8206230A		Filter, Charcoal   (Replaces: 8206230)			Immediately	$ 17.33
8	W10557537		Sensor, Convection				$ 71.07
9	W10892383		Duct, Cavity (front)		Appelez-nous	-
10	WPW10531156		Board, Filter   (Replaces: W10531156)			Immediately	$ 48.75
11	W10670896		Harness, Fade In / Fade Out		Appelez-nous	-
12	W10632409		Baseplate, Air Guide				$ 87.74
13	W10629803		Shield, Finger (includes Seal)				$ 30.70
14	W10810142		Socket, Motor Wire		Appelez-nous	-
15	W11230995		Magnetron   (Replaces: W11188557)			Immediately	$ 317.81
16	W11553234		Thermostat, Magnetron   (Replaces: W10591803)				$ 37.45
17	W10533112		Outlet, Cavity (back)		Appelez-nous	-
18	W10531724		Glass, Lamp			Immediately	$ 29.90
19	W10533484		Cover, Duct (right)		Appelez-nous	-
20	W10571180		Seal, Foam				$ 16.39
21	W10557536		Sensor, Humidity				$ 109.12
22	W10758887		Assembly, Airguide Grille		Appelez-nous	-
23	W10533483		Duct, Cavity (rear)		Appelez-nous	-
24	W11661583		Thermostat, Cavity   (Replaces: W10654514)				$ 54.26
25	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 41.27

    View Diagram in Separate Window       Print Part List
