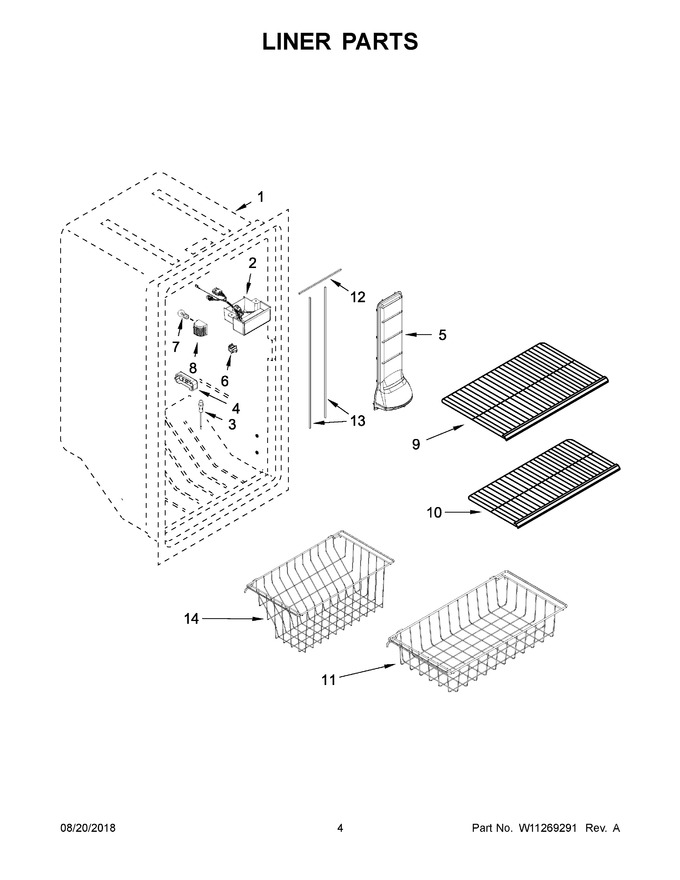

03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11496889 | Control Assembly (Replaces: W11221364) |
|
$ 206.38 | |||||
| 3 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 101.55 | ||||
| 4 | W10608692 | Cover, Thermistor |
|
$ 26.77 | |||||
| 5 | W10574583 | Tower, Air |
|
$ 115.79 | |||||
| 6 | W10755325 | Switch, Light |
|
Immediately | $ 35.29 | ||||
| 7 | W11338583 | Lamp, Led (Replaces: W10805744) |
|
Immediately | $ 91.89 | ||||
| 8 | W10569269 | Lens, Control Box |
|
$ 74.13 | |||||
| 9 | W10838310 | Wire Shelf, Deep (Replaces: W10581578) |
|
$ 130.06 | |||||
| 10 | W10838313 | Wire Shelf, Shallow (Replaces: W10581579) |
|
$ 117.86 | |||||
| 11 | W10736055 | Basket, Shallow |
|
$ 230.94 | |||||
| 12 | WPW10574368 | Gasket, Air Tower (horizontal) (Replaces: W10574564) |
|
$ 7.50 | |||||
| 13 | WPW10574368 | Gasket, Air Tower (vertical) (Replaces: W10574368) |
|
$ 7.50 | |||||
| 14 | W10736043 | Basket, Deep |
|
$ 250.80 |
