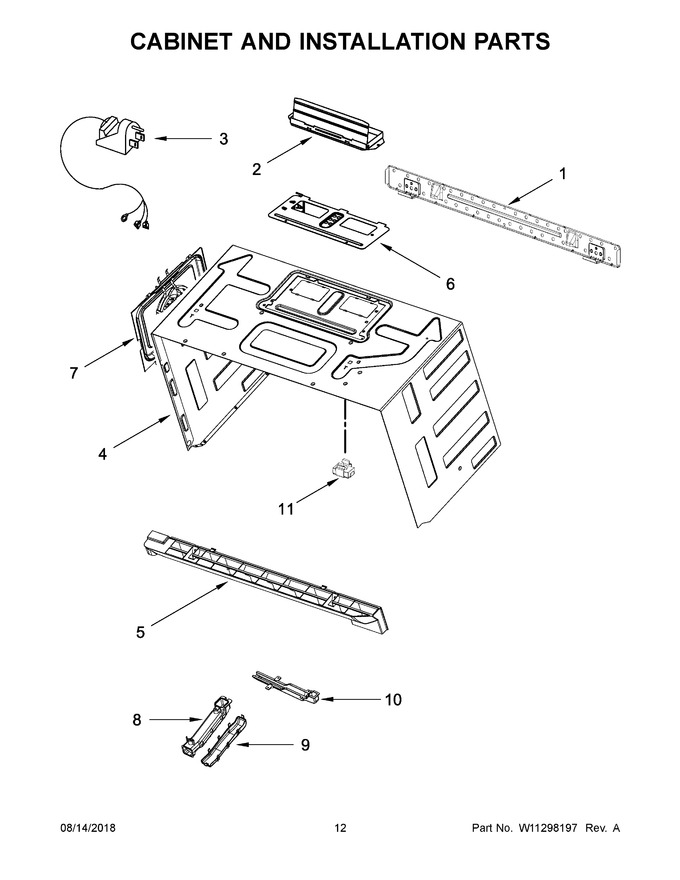

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting			Immediately	$ 21.16
2	W10843943		Damper   (Replaces: W10748710)			Immediately	$ 65.74
3	W10708076		Cord, Power   (Replaces: W10654511)				$ 18.48
4	W11662678		Case, Outer (black)   (Replaces: W11178713)				$ 182.50
5	W10701701		Grille, Vent (black)				$ 71.01
6	W10625423		Cover, Fan Motor				$ 69.87
7	WPW10571554		Assembly, Convection Motor And Fan   (Replaces: W10571554)				$ 274.88
8	W10740434		Duct, Cooling (upper)		Appelez-nous	-
9	W10533489		Duct, Cooling (bottom)		Appelez-nous	-
10	W10570212		Air Duct, Turntable Motor		Appelez-nous	-
11	W11122643		Assembly, Mounting Nut			Immediately	$ 12.31
NI	W10571453		Insulation, Side		Appelez-nous	-
NI	W10892377		Insulation, Bottom		Appelez-nous	-
NI	W10508741		Miscellaneous Parts, Wire, Door Control Cable				$ 20.21
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10571450		Insulation, Back		Appelez-nous	-
NI	W10566562		Miscellaneous Parts, Cable, Fade In / Fade Out		Appelez-nous	-
NI	W10539840		Miscellaneous Parts, Harness, Pcba Ground Wire				$ 21.50
NI	W10566563		Miscellaneous Parts, Harness, Smart Pop		Appelez-nous	-
NI	W10670896		Miscellaneous Parts, Harness, Fade In / Fade Out		Appelez-nous	-
NI	W10877903		Miscellaneous Parts, Harness, Bottom Lamp		Appelez-nous	-
NI	W11185447		Miscellaneous Parts, Harness, Main		Appelez-nous	-
NI	WP8169704		Miscellaneous Parts, 1/4-20x3" Panhead Screw   (Replaces: 8169704)			Immediately	$ 10.07
NI	W10190018		Miscellaneous Parts, Template, Upper (english & French)			Immediately	$ 6.47
NI	W10190020		Miscellaneous Parts, Template, Upper (english & Spanish)				$ 56.21
NI	W10821385		Miscellaneous Parts, Hardware, Installation			Immediately	$ 88.90
