01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

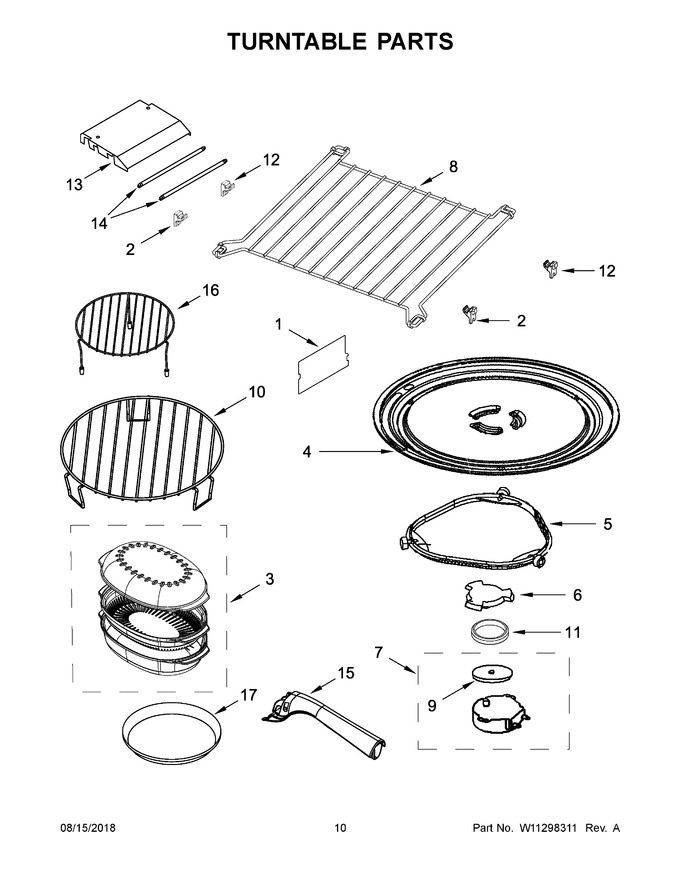

| 1 | W11197783 | Cover, Waveguide (Replaces: W10533498) |
|
$ 66.67 | |||||
| 2 | W10740485 | Hook, Microwave (left Front & Right Front) |
|
$ 19.17 | |||||
| 3 | W10660052 | Steamer (Replaces: W10857799) |
|
Immediately | $ 25.73 | ||||
| 4 | W11402532 | Turntable (Replaces: W10531726) |
|
Immediately | $ 56.06 | ||||
| 5 | W10679313 | Ring, Turntable |
|
$ 83.52 | |||||
| 6 | W10337248 | Driver, Turntable |
|
Immediately | $ 7.05 | ||||
| 7 | WPW10466420 | Motor, Turntable (Replaces: W10466420) |
|
Immediately | $ 41.14 | ||||
| 8 | W10249618 | Rack, Microwave |
|
$ 23.78 | |||||
| 9 | 8184109 | Seal, Waterproof |
|
$ 6.26 | |||||
| 10 | W10440082 | Rack, Convection |
|
$ 14.16 | |||||
| 11 | W10568148 | Seal, Turntable Block |
|
Immediately | $ 27.49 | ||||
| 12 | W10573936 | Hook, Microwave (left Rear & Right Rear) |
|
$ 25.46 | |||||
| 13 | W10689508 | Reflector, Grill |
|
- | |||||
| 14 | W10510202 | Heater, Quartz Grill |
|
Immediately | $ 35.41 | ||||
| 15 | W10851464 | Handle, Crisp Plate (Replaces: W10807961) |
|
$ 22.35 | |||||
| 16 | 8206264 | Rack, Grill |
|
- | |||||
| 17 | W10712983 | Plate, Crisp |
|
$ 74.95 |
