SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body

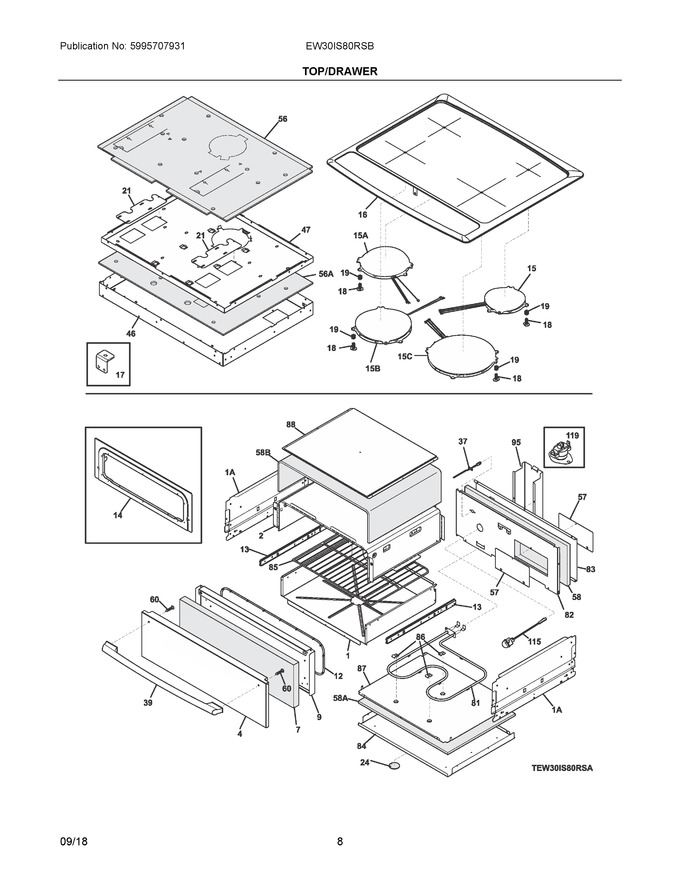

04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318384703		Body, Drawer				$ 340.51
2	318384601		Wrapper, Outer				$ 172.94
4	5304503253		Panel, Drawer, Stainless, Outer				$ 261.86
7	5304503261		Insulation, Drawer Front				$ 38.12
9	5304503255		Liner, Drawer				$ 267.20
12	318053326		Seal, Warmer Drawer				$ 95.68
13	318385600		Glide, Drawer, (2)				$ 111.48
14	318385401		Cover, Front, Drawer				$ 154.89
15	318329241		Element, Induction Coil, 140mm				$ 229.03
16	139033859		Smoothtop Assembly, Glass/steel, Black/stainless, W/trim				$ 825.51
17	318589400		Bracket, Top Latch, (2)				$ 28.04
18	318405000		Pin, Guide, Elements, (12)				$ 19.38
19	318534300		Spring, Guide Pin, (12)				$ 7.09
21	318577901		Shield, Emi		Appelez-nous	-
24	318346050		Insulation, Motor, Door Lock		Appelez-nous	-
37	316217005		Probe, Oven Temp				$ 78.67
39	316380802		Handle, Door, Stainless				$ 250.86
46	5304503249		Box, Burner				$ 206.24
47	5304503250		Panel, Element Support		Appelez-nous	-
56	5304503251		Insullation, Upper		Appelez-nous	-
57	318386301		Panel, Service		Appelez-nous	-
58	318362120		Insulation, Rear		Appelez-nous	-
60	5303288572		Screw-handle Mtg		Appelez-nous	-
81	318255302		Element, Warmer Drawer   (Replaces: 318255306)				$ 138.02
82	5304501677		Panel, Warmer Drawer, Rear		Appelez-nous	-
83	5304501689		Panel, Insulation, Rear		Appelez-nous	-
84	318593800		Panel, Insulationl, Lower, W/stud		Appelez-nous	-
85	318908100		Rack, Mini Oven				$ 163.72
86	316095800		Clip, Hold Down, (3)				$ 9.93
87	318295313		Panel, Bottom		Appelez-nous	-
88	318532305		Panel, Deflector, Mini Oven   (Replaces: 318532303)		Appelez-nous	-
95	139008401		Shield, Wire		Appelez-nous	-
115	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
119	318004902		Switch, Thermal			Immediately	$ 71.44
15A	318329242		Element, Induction Coil, 180mm				$ 268.46
15B	318329243		Element, Induction Coil, 210mm				$ 312.44
15C	318329244		Element, Induction Coil, 260mm				$ 363.59
1A	318300002		Panel, Warmer Drawer, Side, (2)				$ 55.42
56A	5304503252		Insullation, Lower		Appelez-nous	-
58A	318362173		Insulation, Bottom		Appelez-nous	-
58B	318362129		Insulation, Upper		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
NI	316459400		Pad, Cleaning		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44

    View Diagram in Separate Window       Print Part List
