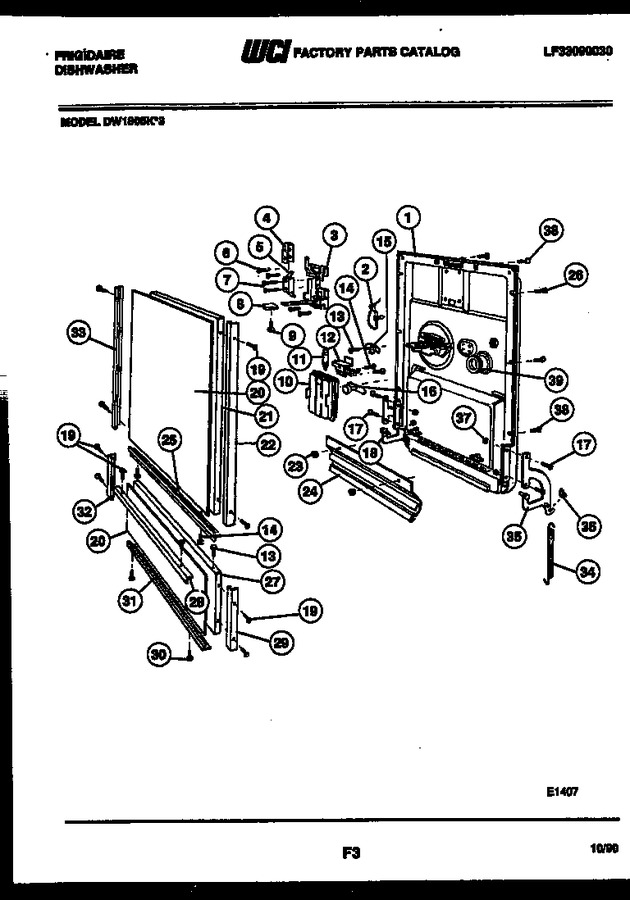

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300809635		Door Assy		Appelez-nous	-
2	5300809075		Tie		Appelez-nous	-
3	5300807016		Latch Assy		Appelez-nous	-
4	5300807450		Cover - Switch		Appelez-nous	-
5	5300807043		Switch		Appelez-nous	-
6	5300809029		Screw		Appelez-nous	-
7	5300808618		Screw		Appelez-nous	-
8	5300808698		Knob-latch		Appelez-nous	-
9	5300808715		Screw		Appelez-nous	-
10	5300806753		Body Assy.				$ 69.93
11	5300809898		Plunger				$ 36.49
12	5300809109		Bi-metal				$ 38.48
13	154419403		Screw   (Replaces: 5300808658)				$ 13.10
14	3018065		Screw		Appelez-nous	-
15	5300807213		Terminal Ground		Appelez-nous	-
16	5300807673		Plug-dispenser		Appelez-nous	-
17	5300803311		Screw		Appelez-nous	-
18	5300807539		Arm Assy-lh				$ 7.88
19	5300809752		Screw		Appelez-nous	-
20	5300808922		Inserts-door & Access Panel Avocado		Appelez-nous	-
20	5300808923		Inserts-door & Access Panel Black		Appelez-nous	-
22	5300808990		Trim-door Rh		Appelez-nous	-
23	5300809026		Speednut		Appelez-nous	-
24	5300809636		Baffle-seal		Appelez-nous	-
25	5300809637		Trim-door Bottom		Appelez-nous	-
26	5300808749		Screw		Appelez-nous	-
28	5300808471		Trim-access Top				$ 27.35
29	5300808103		Trim-access Rh		Appelez-nous	-
30	5304480396		Screw   (Replaces: 5300803416)				$ 11.34
31	5300808303		Trim-access Bottom		Appelez-nous	-
32	3018182		Trim-access Lh		Appelez-nous	-
33	5300808918		Trim - Door Lh		Appelez-nous	-
34	3202857		Spring-door		Appelez-nous	-
35	3018054		Arm Assy-rh		Appelez-nous	-
36	5300805884		Pad-spring		Appelez-nous	-
37	3018052		Nut		Appelez-nous	-
38	5300809055		Screw				$ 1.21
39	3018174		Grommet		Appelez-nous	-
*38152	5303208361		Wood Door Kit (optional)		Appelez-nous	-
