01 - Cover Sheet
02 - Cooktop, Burner And Grate Parts

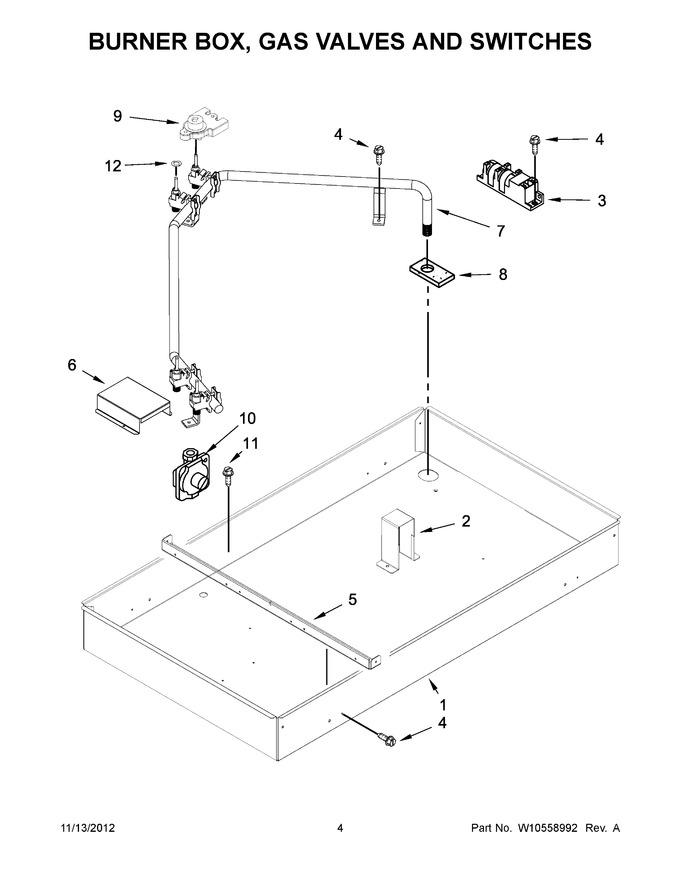

03 - Burner Box, Gas Valves And Switches
04 - Parts Not Illustrated
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4011F526-51 | Burner Box |
|
- | |||||
| 2 | 3807F689-51 | Support, Glass |
|
- | |||||
| 3 | WPW10475147 | Module, Spark (Replaces: 7431P038-60) |
|
Immediately | $ 214.42 | ||||
| 4 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 5 | 8405P087-60 | Bracket, Downdraft Brace |
|
- | |||||
| 6 | 4005F816-51 | Cover, Spark Module |
|
$ 41.45 | |||||
| 7 | 7513P305-60 | Pipe, Manifold |
|
$ 146.98 | |||||
| 8 | WP74001380 | Seal, Manifold Pipe Inlet (Replaces: 7208P024-60) |
|
$ 58.91 | |||||
| 9 | WP74007753 | Switch, Spark Left (Replaces: 7403P818-60) |
|
$ 121.78 | |||||
| 10 | W11087445 | Regulator, Pressure (Replaces: 7510P093-60) |
|
Immediately | $ 177.34 | ||||
| 11 | WP71001171 | Screw (Replaces: 7101P460-60) |
|
$ 6.26 | |||||
| 12 | WP74010652 | Gasket (left) (Replaces: 7201P135-60) |
|
$ 73.71 | |||||
| 12A | WP74010776 | Gasket (right) (Replaces: 7201P144-60) |
|
$ 63.68 | |||||
| 9A | WP74007774 | Switch, Spark Right (Replaces: 7403P820-60) |
|
$ 122.99 |
