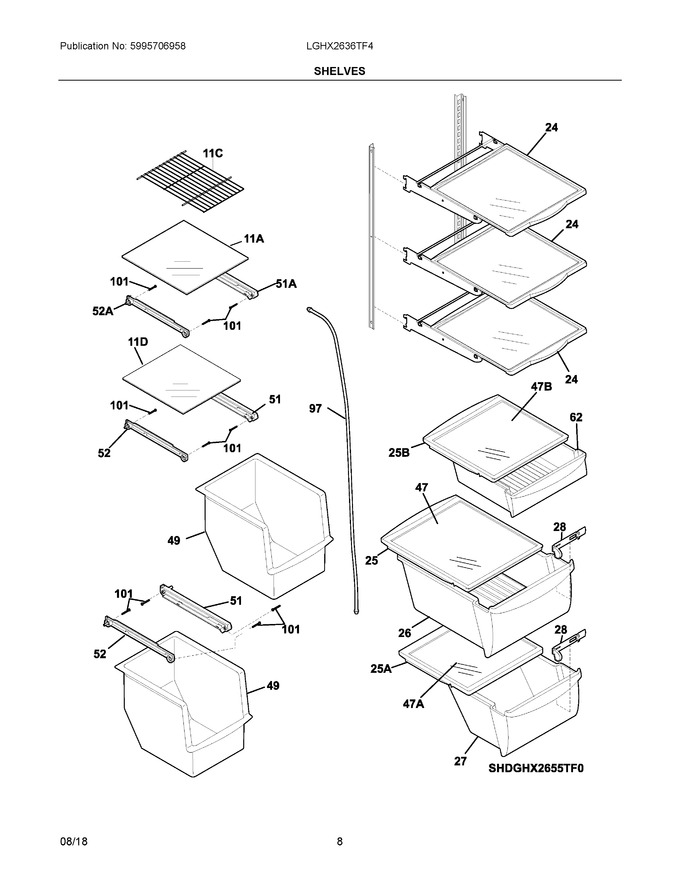

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
24	5304511775		Shelf-"spill-safe", Cantilever, Fixed   (Replaces: 5304512782)				$ 172.91
25	240599301		Cover-crisper Pan, Upper			Immediately	$ 94.38
26	240351061		Pan-crisper, Upper			Immediately	$ 110.01
27	240351240		Pan-crisper, Lower				$ 203.45
28	240362201		Control-humidity				$ 69.46
47	240350649		Insert-pan Cover, Glass			Immediately	$ 123.89
49	240564401		Basket-sliding			Immediately	$ 158.90
51	240343002		Hanger-basket, Rh				$ 65.22
52	240343102		Hanger-basket, Lh				$ 69.77
62	241969607		Pan-meat   (Replaces: 241969601)				$ 204.47
97	242220119		Tube-water, 97.5", Natural, Filter Base To, Secondary Valve			Immediately	$ 30.47
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 13.46
11A	240350604		Shelf-freezer, Glass, Upper				$ 114.52
11C	809078301		Shelf, Pizza		Appelez-nous	-
11D	240350605		Shelf-freezer, Glass, Lower				$ 106.93
25A	240350903		Cover-crisper Pan, Lower			Immediately	$ 91.99
25B	241969501		Cover-meat Pan			Immediately	$ 96.21
47A	240350603		Insert-pan Cover, Glass			Immediately	$ 115.52
47B	240443384		Insert-pan Cover, Glass				$ 151.68
51A	240395502		Hanger-basket, Rh				$ 73.00
52A	240395602		Hanger-basket, Lh				$ 61.66
NI	240349801		Clip-slide, Pan				$ 20.48
NI	240362101		Clip-slide, Cover				$ 47.03
NIA	241806601		Connector-water, Straight, 5/16 To 5/16   (Replaces: 242103001)			Immediately	$ 70.56
NIA	241868101		Air Guide		Appelez-nous	-
NIB	242200102		Clip, Tubing, 90 Deg Elbow   (Replaces: 242200101)				$ 10.63
